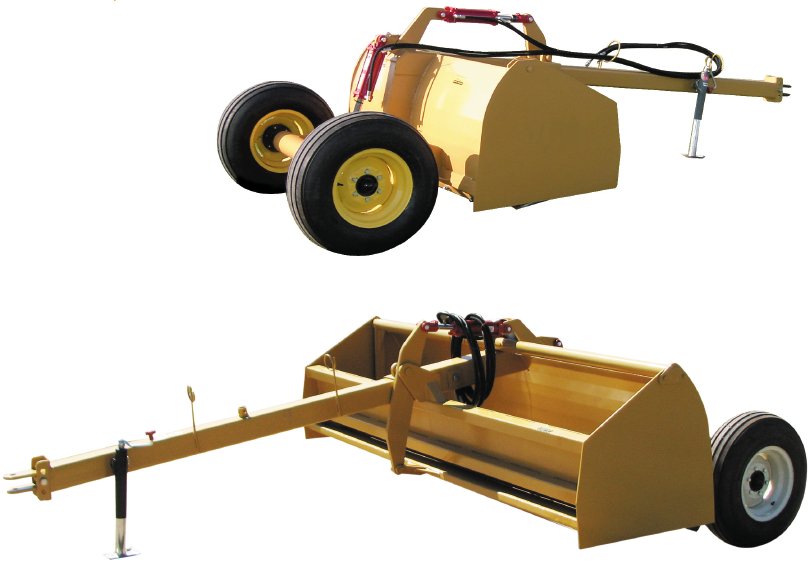

CARRY-ALL WHEELED SCRAPER
|
|
Features such a quality construction, ease of maintenance, high performance operating capacities, and low price make the Carry-All
Wheeled Scraper one of the most efficient scrapers ever. The unit will operate as a regular drag scraper for leveling and grading operations. A hydraulic operated gate will close the bucket and lock the materials in place for moving large amounts of material to a different location. This eliminates the need to disconnect the scraper to connect a bucket, saving time and labor. The tractor capacity
needed to operate the unit is 8-10 HP per foot.
|
|
|

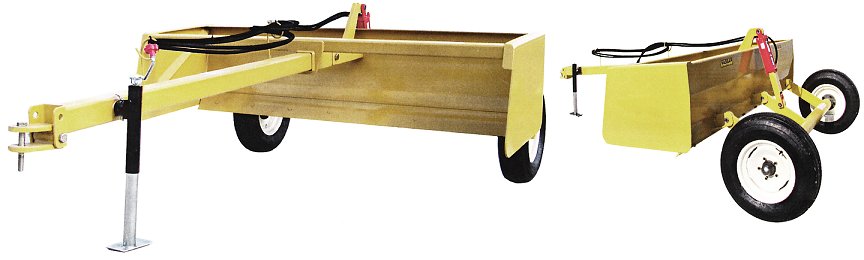

DRAG SCRAPER
|
|
The NEW V-Series Drag Scraper is an excellent tool
that conserves valuable time in the Orchard, Farm, or around the Ranch. This
scraper is a great tool for repairing eroded areas and boarders, cleaning yards
and scraping roads. It can also be used for corrals, and barn areas. The newly
designed front cross-member allows full vision of the blade. The large capacity
allows for efficient handling of large volume material for tractors 70 to 120
HP.
|
|
|
STANDARD FEATURES
-
Hydraulic height control
-
Safety lock is provided for easy
transportation
-
Reinforced stress points
-
Removable bolt-on tongue for easy transport
-
Adjust-A-Hitch can be adjustable to the
tractor draw bar
-
Double beveled curved, center-punchedbolt-on
high carbon blade
|
SPECIFICATIONS
- Working widths of 8', 10' & 12'
- Clearance of 23" raised and 3"
below grade
- Hydraulically operated from the tractor seat
- Main cross beam 3" x 4" tubing
|
INCLUDES
- 3" X 8" Double acting cylinder and
hoses
- New ribbed implement tires
- Bolt-on adjustable hitch
- Weight box for adding additional weight
|
|

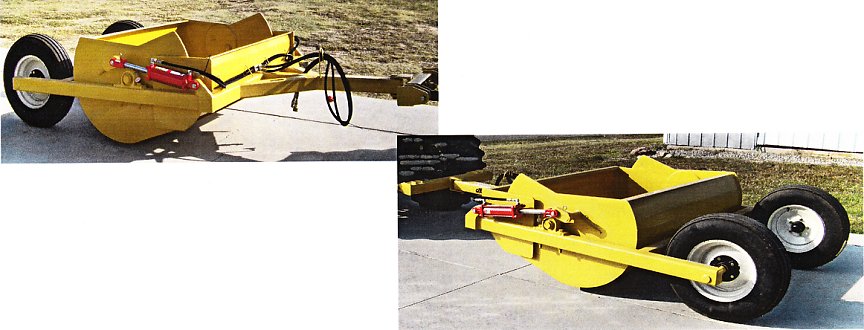

DIRT SCOOP
|
|
Scrape, lift, and transfer soil without the need to
drag an implement across the ground. Only one set of hydraulics is needed due to
the use of the three point hitch. The Dirt Scoop is perfect for agricultural
use, landscaping, and light construction.
|
|
|
FEATURES
| Model |
Length |
HP |
Cutting
Width / Cutting Depth |
Dump
Height |
Pan
Capacity |
Wt.
LBS |
| PS 60 |
60" |
30-60 |
60"
width; 0-3 inches |
0-8 inches |
1.5 Yards |
1300 |
| PS 84 |
84" |
60-100 |
84"
width; 0-3 inches |
0-8 inches |
3 Yards |
1600 |
|
|
PRICES
|
| Part
No. |
Model |
Description |
Recommended
HP |
Wt.
(lbs.) |
Capacity |
Retail
Price (Add Freight) |
| 580006 |
EM-72 |
6'
CARRY ALL WHEELED SCRAPER |
48-65+HP |
1800 |
1.6
Yards |
`$5,070.00
USD |
| 580008 |
EM-96 |
8'
CARRY ALL WHEELED SCRAPER |
65-80+HP |
2120 |
2.2
Yards |
`$5,925.00
USD |
| 580010 |
EM-120 |
10'
CARRY ALL WHEELED SCRAPER |
80-100+HP |
2460 |
2.7
Yards |
`$6,315.00
USD |
| 580012 |
EM-144 |
12'
CARRY ALL WHEELED SCRAPER |
95-120+HP |
2800 |
3.25
Yards |
`$6,940.00
USD |
|
|
|
| Part
No. |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 590006 |
6'
DRAG SCRAPER DS72 |
1110 |
`$3,100.00
USD |
| 590008 |
8'
DRAG SCRAPER DS96 |
1260 |
`$3,215.00
USD |
| 590010 |
10'
DRAG SCRAPER DS112 |
1410 |
`$3,320.00
USD |
| 590012 |
12'
DRAG SCRAPER |
1560 |
`$3,430.00
USD |
|
|
|
| Part
No. |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 575005 |
DIRT
SCOOP 5' DSC60 |
1380 |
`$4,495.00
USD |
| 575007 |
DIRT
SCOOP 7' DSC84 |
1633 |
`$5,415.00
USD |
|
|
Hoses & cylinders included
|
