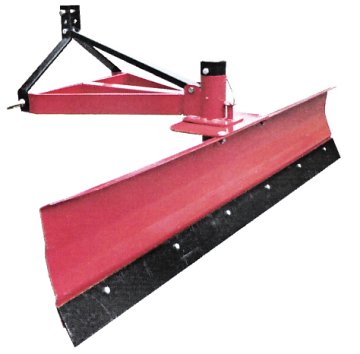

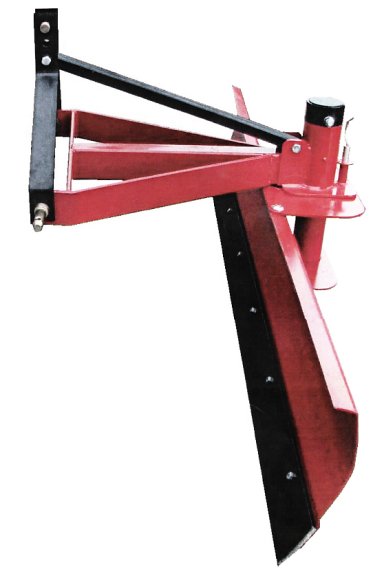

V - Series Estate Rear Utility Blade
IDEAL FOR: Grading - Leveling - Back Filling - Road Building - Snow Removal
|
Category "0" to "1" tractor specification: This all
purpose utility blade is ideal for grading, leveling, back filling, road
building and snow removal. The moldboard is 13" high, has three forward and three
reverse angular positions and full 360 degree rotation on a 3" king pin.
The cutting angle is easily and quickly locked in position by a heavy duty
5/8" pin. The cutting edge is 9/32" x 4" high carbon steel and is
replaceable. The moldboard can be offset 6" each side of center.
Combination Category "0" and "1" hitch with Category
"1" pull pins.
|
|
|
SPECIFICATIONS:
- MAIN FRAME 3" X 2" TUBULAR STEEL.
CATEGORY 1 WITH CATEGORY 1 7/8" PINS. CATEGORY 0 5/8" PINS
OPTIONAL.
- MOLDBOARD IS 3/16" X 13" X 4, 5
OR
6’ LONG; 360 DEGREE ROTATION.
- CUTTING EDGE 9/32" X 4 HIGH CARBON STEEL REMOVABLE REPLACEABLE
- COMBINATION CATEGORY "0" AND "I" HITCH WITH CATEGORY
"0"OR "I" PULL PINS.
|
|
PRICES
|
| Part
No. |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 532204 |
REAR
BLADE - ESTATE II 4' CAT 1 |
121 |
$305.00
USD |
| 532205 |
REAR
BLADE - ESTATE II 5' CAT 1 |
148 |
$340.00
USD |
| 532206 |
REAR
BLADE - ESTATE II 6' CAT 1 |
174 |
$405.00
USD |
MINIMUM 10 HP 2WD CAT. 0
FOR GARDEN TRACTOR
|
|
