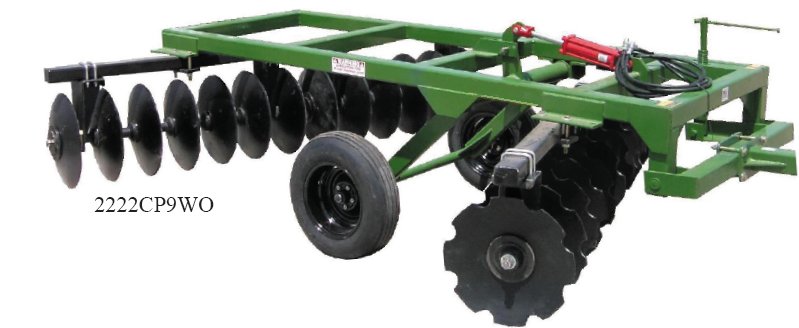

WHEEL TYPE DISC
|
|
The V-Series wheel type discs feature a heavy duty 4x4x1/4 tubular steel frame engineered for extra strength. The wheeled discs have 9" spacing, 22"x 3/16, plain or notched blades. Heavy duty square axle, square hole discs, and self-aligning triple sealed and
grease able bearings are also square bore to keep discs from turning between spools.
|
|
Specifications
- Heavy Duty Frame
- 4" Square
Tubing
- 4"x3"
Gang Carrier Tube
- 1 3/8" c
1045 steel Axle
- Triple Sealed
Self Aligning Ball Bearings (re-lube type)
- Adjustable Tongue
- Adjustable Tension for even penetration; cuts deep and level.
- Pin type stop for
transporting
- 22" x
3/16" cut out disc blades
- 16" furrow
filler disc
- 24" X
1/4" cut out disc blades (Optional)
- Weight - 2400 t0
3000 lbs.
- 7' to 9'4"
cutting widths
- Use standard
3" or 4" x 8" cylinders
- Hoses, cylinders, and scrapers
included
|
|
WHEEL TYPE
9" Spacing all Models
BLADES 3/16" x 22" or 1/4" x 24"
|
|
C

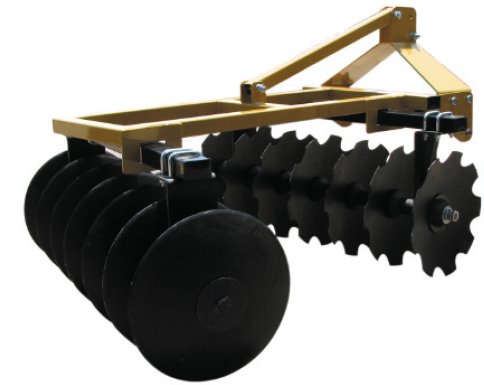

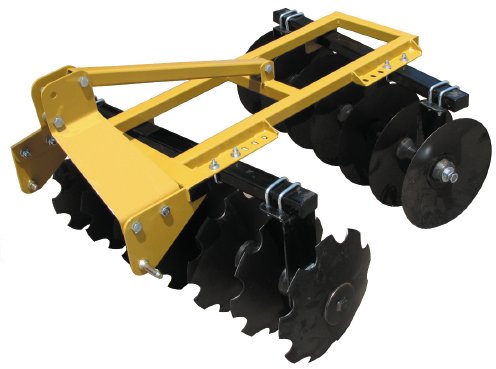

& CHD & D3 FRAME ASAE Quick
Hitches
|
FEATURES:
• Cat. 1, 3-point hitch
• Cat. 2 Optional
• 7" blade spacing
• Triple sealed ball bearings
• Adjustable front and rear gangs
• 1 1/8" Square high carbon axles
• 18" Blades, notched or plain
|
|
|
|
Part Number Example
|
|
2222CO9WO
|
|
22
First two numbers designate number of disc (10
thru 28).
|
|
22
Second two numbers designate diameter of disc
(16", 18", etc.).
|
|
CO
P-CP-CO designation: P = plain disc, CP = cutout
front gangs & plain rear gangs, CO = cutout or notched.
|
|
9
Disc spacing*
|
|
WO
Disc frame (A3, B2, C, HD, N2, WO)
|
|
* The 7" or 9" spacing
is available in most models. If the spacing required is not listed
on this price list, call us for quote (401-725-8141)
|
|
PRICES
|
|
WHEEL
TYPE
|
|
22" 3/16 Blades on 9" Spacing
|
| Part
No. |
Size |
No.
Blades |
Blade
Size |
Required
HP |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 2222CO9WO |
8' 6" |
22 |
3/16" x
22" |
80HP |
2368 |
$8,100.00 USD |
| 2222CP9WO |
8' 6" |
22 |
3/16" x
22" |
2368 |
$8,100.00 USD |
| 2622CO9WO |
10' |
26 |
3/16" x
22" |
100HP |
2556 |
$8,750.00 USD |
| 2622CP9WO |
10' |
26 |
3/16" x
22" |
2556 |
$8,750.00 USD |
|
|
*$225.00 ASSEMBLY CHARGE FOR WHEELED
SERIES
|
|
C
& CHD & D3 FRAME ASAE Quick Hitches
|
| Part
Number |
Description |
Required
HP |
Weight |
Retail
Price (Add Freight) |
| 1218CP7C |
OFFSET DISC
42" -7" SP-C FRAME |
35-45HP |
356 |
$835.00 USD |
| 1418CP7C |
OFFSET DISC
48" -7"-SP-C FRAME |
400 |
$910.00 USD |
| 1618CP7CHD |
OFFSET DISC
54" HEAVY DUTY FRAME |
461 |
$1,010.00 USD |
| 1818CP7D3 |
OFFSET DISC
60" - D3 FRAME |
40-50HP |
600 |
$1,440.00
USD |
| 2018CP7D3 |
OFFSET DISC
66" - D3 FRAME |
650 |
$1,550.00
USD |
* $40.00 Assembly charge for C and CHD series
* $50.00 Assembly charge for D3 series
|
|
|
