China Depot V-Series Han-Dee Post Hole Diggers

V-Series Post Diggers are designed to withstand the rugged use you expect from equipment used on the farm as well as on rough hilly terrain. The digger units will dig postholes for you wherever you can drive your tractor. All units carry the same performance guarantee as all V-Series products.

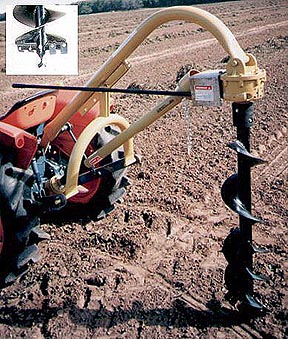

The New V-Series "Han-Dee" Post Hole Digger. 3 Point Boom Type Category "1"

Specifications:

45" Digging Depth
Hard Surfaced Fishtail Point
Segmented Blades - (Hard Surfacing optional)
Heavy Duty Auger with Auger Bolt Shield
Shield Drive Shaft
Complete with 2" output shaft Gear Box (3 to 1 Ratio)
Use with tractors having 540 RPM PTO Boom Type Frame
Category "1" Lift Bracket with 7/8" Lift Pins
Available with 6" - 9" or 12" Augers
Weight: 170 to 207 lbs.

Features:

Fish Tail Type point for heavy soil digging
Removable & Replaceable Blades
Segmented Blade
Heavy Duty Blade Carrier backup keeps blades in place
Easy to mount
Economical - Low initial investment
Minimum of upkeep
Steel cut gears guaranteed for 3 years

**NOTE: Leveling Handle is no longer available for the Post Hole Diggers**

PRICES

Part No.	Description	Wt. (lbs.)	Retail Price + Freight
682006	DIGGER-HANDEE II 6" CAT. 1	173	$933.00 USD
682009	DIGGER-HANDEE II 9" CAT. 1	180	$964.00 USD
682012	DIGGER-HANDEE II 12" CAT. 1 (30-50HP REQUIRED)	187	$1,008.00 USD

Part Number	Description	Wt. (lbs.)	Retail Price + Freight
700035	T-POST DRILL 2" RND 1-5/8" BAR W/ CARBIDE TIP	23	$338.00 USD
700036	T-POST DRILL 2-9/16" RND 1-5/8" SOLID BAR W/ CARBIDE TIP	23	$338.00 USD
700037	CP/16 CARBIDE PILOT BIT	3	$101.00 USD
700038	T-POST DRILL 2" HEX 1-5/8" SOLID BAR W/ CARBIDE TIP	24	$338.00 USD
700104	MOUNT KIT TM	57	$242.00 USD
700105	MOUNT KIT SS	149	$698.00 USD
700150	HYDRAULIC DIGGER ASSEMBLY (CAP 6" TO 18" DIRT AUGER AND NO ROCK AUGER)	120	$1,485.00 USD*
700300	HYDRAULIC DIGGER ASSEMBLY (CAP 6" TO 36" DIRT AUGER AND 6" TO 18" ROCK AUGER)	125	$1,689.00 USD*

* Auger price must be added to this price

Post Hole Digger Parts & Accessories

Part No.	Description	Weight (lbs.)	Retail Price + Freight
600530	POINT FISHTAIL ALL MODELS	3	$42.00 USD
610116	AUGER 6" x 32" ESTATE	23	$154.00 USD
610119	AUGER 9" x 32" ESTATE	28	$169.00 USD
610112	AUGER 12" x 32" ESTATE	32	$205.00 USD
633116	AUGER 6" x 45" HANDEE	28	$175.00 USD
633119	AUGER 9" x 45" HANDEE	35	$196.00 USD
633112	AUGER 12" x 45" HANDEE	40	$238.00 USD
630112	AUGER RANCH & HYD. STD DUTY 12" X 48"	50	$245.00 USD
630116	AUGER RANCH & HYD. STD DUTY 6" X 48"	33	$195.00 USD
630118	AUGER RANCH & HYD. STD DUTY 18" X 48"	74	$339.00 USD
630119	AUGER RANCH & HYD. STD DUTY 9" X 48"	42	$230.00 USD
630124	AUGER RANCH & HYD. STD DUTY 24" X 48"	99	$451.00 USD
630207	AUGER EXTENSION 7"	6	$77.00 USD
630212	AUGER EXTENSION 12"	9	$93.00 USD
634200	DOWN FORCE KIT (RANCH ONLY)	54	$406.00 USD
P140029	TOOTH, CHISEL	1	$3.22 USD
P133835	TOOTH, DIRT	1	$2.60 USD
P140027	TOOTH, DIRT GAGE	1	$4.08 USD
P140007	TOOTH, CARBIDE	1	$16.18 USD
P135088	PILOT BIT	6	$27.35 USD
P135090	CARBIDE PILOT BIT	6	$84.50 USD
P555050	HEAVY DUTY DIRT AUGER 6" X 48"	44	$541.00 USD
P555051	HEAVY DUTY DIRT AUGER 9" X 48"	48	$593.00 USD
P555052	HEAVY DUTY DIRT AUGER 12" X 48"	56	$644.00 USD
P555054	HEAVY DUTY DIRT AUGER 16" X 48"	61	$686.00 USD
P555055	HEAVY DUTY DIRT AUGER 18" X 48"	73	$799.00 USD
P555056	HEAVY DUTY DIRT AUGER 24" X 48"	89	$851.00 USD
681025	POINT SCREW TYPE ALL MODELS	3	$40.00 USD
600216	BLADES 6" SET DIG-EZY	1	$19.00 USD
600219	BLADE 9" SET DIG-EZY	2	$36.00 USD
600212	BLADE 12" SET DIG-EZY	3	$42.00 USD
630222	BLADE 1 3/8" HS HANDEE-RANCH	1	$10.00 USD
630223	BLADE 1 3/8" PLN HANDEE-RANCH	1	$7.00 USD
680252	BLADE 9" NOTCHED PLN	3	$24.00 USD
680253	BLADE 9" NOTCHED H.S.	3	$36.00 USD
680250	BLADE 6" (2-HOLE) PLN	2	$14.00 USD
680251	BLADE 6" (2-HOLE) H.S.	2	$19.00 USD
680254	BLADE 12" NOTCHED PLN	3	$27.00 USD
680255	BLADE 12" NOTCHED H.S.	3	$41.00 USD
650627	AUGER SLEEVE ADAPTERS 1¼"	3	$23.00 USD
600682	AUGER SLEEVE ADAPTERS 1 3/8"	3	$25.00 USD
681064	AUGER SLEEVE ADAPTERS 1½"	3	$28.00 USD
