China Depot V-Series Grapplers

V - Series Grapplers:
Compact • Heavy Duty • Bucket
For commercial and farm operations

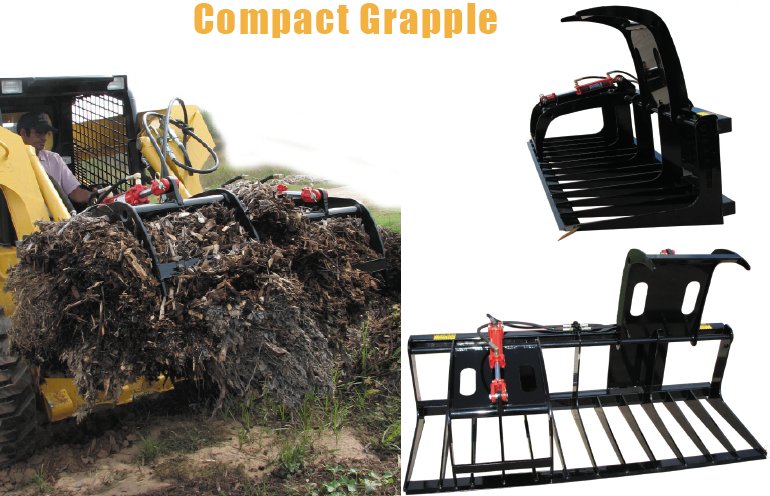

Features such as quality construction, ease of maintenance, and high performance operating capacities, all at a low price, make the Compact Grapple one of the most efficient tools ever. The grapple is constructed of 3/8" steel driven by 2X6 cylinders. The grapple offers a 40" opening giving a large load capacity.

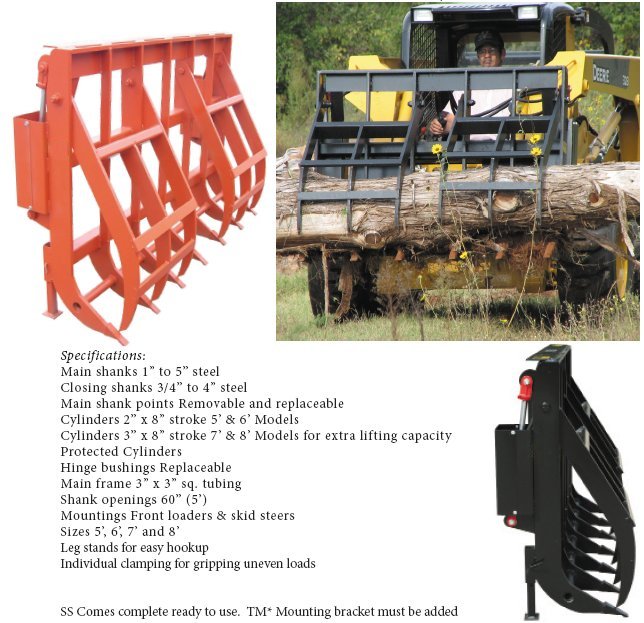

Heavy Duty Grapple

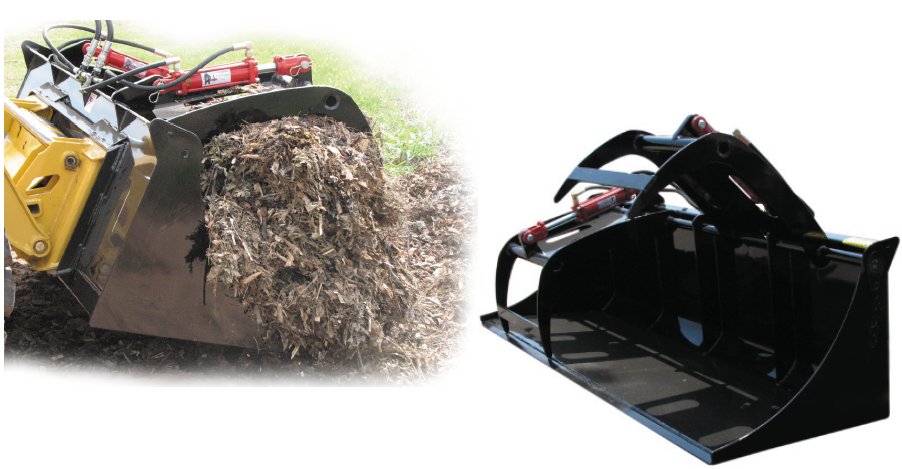

Bucket Grapple

Constructed of 3/8" steel
• Driven by twin 2X6 cylinders
• 40" opening for load capacity
• Comes with cylinders and hoses from tee to cylinders
• You will need to provide hoses from the unit to the Grapple

PRICES

Part No.	Description	HP Required	Weight	Retail Price (Add Freight)
HEAVY DUTY GRAPPLERS
393505*	GRAPPLER 5' TM (comes with two 2 X 8 cylinders)	65HP	730	$2,535.00 USD
393506*	GRAPPLER 6' TM (comes with two 2 X 8 cylinders)		850	$2,750.00 USD
393507*	GRAPPLER 7' TM (comes with two 3 X 8 cylinders)		930	$3,200.00 USD
393509*	GRAPPLER 8' TM (comes with two 3 X 8 cylinders)		1030	$3,550.00 USD
393515	GRAPPLE 5' SKID STEER (comes with two 2 X 8 cylinders)		990	$3,010.00 USD
393516	GRAPPLE 6' SKID STEER (comes with two 2 X 8 cylinders)		1110	$3,225.00 USD
393517	GRAPPLE 7' SKID STEER (comes with two 3 X 8 cylinders)		1190	$3,675.00 USD
393519	GRAPPLE 8' SKID STEER (comes with two 3 X 8 cylinders)		1275	$4,035.00 USD
BUCKET GRAPPLERS
400204	BUCKET GRAPPLER 4' SS (comes with two 2 X 6 cylinders)	35-40HP	580	TBD
400205	BUCKET GRAPPLER 5' SS (comes with two 2 X 6 cylinders)	40-50HP	630	$2,565.00 USD
400206	BUCKET GRAPPLER 6' SS (comes with two 2 X 6 cylinders)	50-60HP	680	$2,765.00 USD
400214*	BUCKET GRAPPLER 4' TM (comes with two 2 X 6 cylinders)	30-40HP	500	TBD
400215*	BUCKET GRAPPLER 5' TM (comes with two 2 X 6 cylinders)	40-50HP	550	TBD
400216*	BUCKET GRAPPLER 6' TM (comes with two 2 X 6 cylinders)	50-60HP	600	TBD
COMPACT GRAPPLERS
400104	COMPACT GRAPPLE 4' SS (comes with two 2 X 6 cylinders)	35-40HP	540	TBD
400105	COMPACT GRAPPLE 5' SS (comes with two 2 X 6 cylinders)	40-50HP	560	$2,315.00 USD
400106	COMPACT GRAPPLE 6' SS (comes with two 2 X 6 cylinders)	50-60HP	580	$2,515.00 USD
400114*	COMPACT GRAPPLE 4' TM (comes with two 2 X 6 cylinders)	30-40HP	460	TBD
400115*	COMPACT GRAPPLE 5' TM (comes with two 2 X 6 cylinders)	40-50HP	480	$2,006.00 USD
400116*	COMPACT GRAPPLE 6' TM (comes with two 2 X 6 cylinders)	50-60HP	500	$2,200.00 USD

*NOTE: MOUNTING BRACKET MUST BE ADDED TO PRICE
