| V - Series Estate Tandem Disc
A FRAMES, B
FRAMES, HD1 FRAMES, HD5 FRAMES, WHEEL TYPE
|
|
|
WHEEL TYPE
|
| The V-Series wheel type discs feature a heavy duty
4x4x¼ tubular steel frame engineered for extra strength. The wheeled discs have 9" spacing, 22"x 3/16, plain or notched blades. Heavy duty square axle, square hole discs, and self-aligning triple sealed and
greaseable bearings are also square bore to keep discs from turning between spools.
Additional Features:
• Adjustable tongue
• Adjustable tension for even penetration cuts deep and level
• Pin type stop for transporting
• Cylinder and hoses included
• Scrapers and hoses included
|
|
|

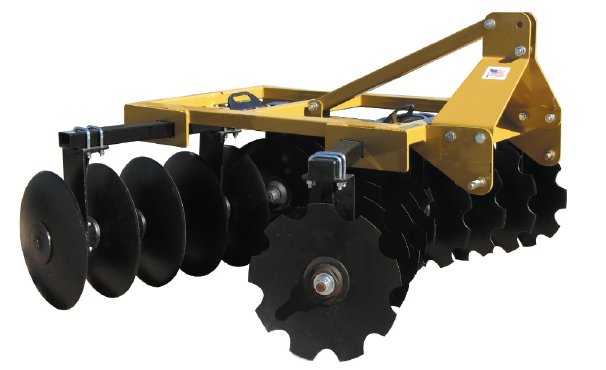

A
& B FRAME
|
A.S.A.E Quick Hitch Compatible
The V-Series Disc features a heavy duty tubular frame engineered for extra strength. The center rib serves as the main structural tie from front to rear, giving the frame maximum strength throughout. In addition, it serves as the adjusting frame for the inside gang adjustment.
Triple sealed ball bearings enable the V-Series Disc to do your job better with less horsepower and upkeep.
Self-aligning bearings are factory lubricated for life. Bearings are square bore to keep discs from turning
between spools.
V-Series discs offer square axle, square bore bearings and square whole discs giving the best performance possible. These discs also have angle adjustments on each gang. This multiple adjustment feature allows you to adjust all types of soil conditions for best penetration.
|
 Features:
• Cat. 1, 3-point hitch
• Cat. 2 Optional
• 7" blade spacing
• Triple sealed ball bearings
• Adjustable front and rear gangs
• 1 1/8" square high carbon axles
• 18" - 20" blades, notched or plain |
|
HD1
& HD5 FRAME
|
|
A.S.A.E Quick Hitch Compatible
|
 Features:
• Cat. 1, 2 combo 3-point hitch
• 7" or 9" blade spacing
• Triple sealed ball bearings
• Adjustable front and rear gangs
• 1 1/8" square high carbon axles
• 22" blades, notched or plain
|
Part Number Example
|
1618CO7A3 |
| 16
First two numbers designate number of disc (10 thru
28). |
| 18
Second two numbers designate diameter of disc
(16", 18", etc.). |
| CO
P-CP-CO designation: P = plain disc, CP = cutout
front gangs & plain rear gangs, CO = cutout or notched. |
| 7
Disc spacing* |
| A3
Disc frame (A3, B2, C, CHD, N2, WO) |
| * The 7" or 9" spacing is
available in most models. If the spacing required is not listed on
this price list, call us for quote (401-725-8141) |
|
|
PRICES
|
A & B FRAMES
| Part
No. |
Description |
Required
HP |
Wt.
(lbs.) |
Retail
Price + Freight |
| 1618CO7A3 |
DISC
5 ½' -7" SP- A3 FR |
25-40HP |
501 |
$1,112.00
USD |
| 1618CP7A3 |
DISC
5 ½' -7" SP- A3 FR |
505 |
$1,112.00
USD |
| 2018CO7A3 |
DISC 6'
-7" SP- A3 FR |
601 |
$1,350.00
USD |
| 2018CP7A3 |
DISC 6'
-7" SP- A3 FR |
611 |
$1,350.00
USD |
| 2020CP7A3 |
DISC
6' -7" SP-A3 FR |
711 |
$1,450.00
USD |
| 2418CO7B2 |
DISC 7'
-7" SP- B2 FR |
40-55HP |
677 |
$1,512.00
USD |
| 2418CP7B2 |
DISC 7'
-7" SP- B2 FR |
689 |
$1,512.00
USD |
| 2420CP7B2 |
DISC
7' -7" SP-B2 FR |
809 |
$1,650.00
USD |
| 2818CO7B2 |
DISC 8'
-7" SP- B2 FR |
717 |
$1,725.00
USD |
| 2818CP7B2 |
DISC 8'
-7" SP- B2 FR |
732 |
$1,725.00
USD |
| 2820CP7B2 |
DISC
8' -7" SP- B2 FR |
872 |
$1,850.00
USD |
* $40.00 ASSEMBLY CHARGE FOR A & B SERIES
|
|
WHEEL TYPE
|
| Part
No. |
Description |
Required
HP |
Wt.
(lbs.) |
Retail
Price + Freight |
| 2022CP9WT |
DISC
8' - 9" SP-WT FR |
80HP |
2750 |
$5,930.00
USD |

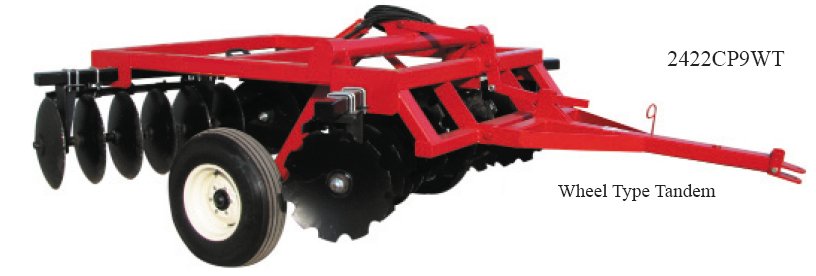

| 2422CP9WT |
DISC
9½' - 9" SP-WT FR |
90HP |
2900 |
$6,998.00
USD |
| 2822CP9WT |
DISC
11' - 9" SP-WT FR |
110HP |
3050 |
$8,066.00
USD |
| 3222CP9WT |
DISC
12½' - 9" SP-WT FR |
120HP |
3300 |
$9,146.00
USD |
| 2022CO9WT |
DISC
8' - 9" SP-WT FR |
80HP |
2750 |
$5,930.00
USD |
| 2422CO9WT |
DISC
9½' - 9" SP-WT FR |
90HP |
2900 |
$6,998.00
USD |
| 2822CO9WT |
DISC
11' - 9" SP-WT FR |
110HP |
3050 |
$8,066.00
USD |
| 3222CO9WT |
DISC
12½' - 9" SP-WT FR |
120HP |
3300 |
$9,146.00
USD |
|
|
* $150.00 ASSEMBLY CHARGE FOR WHEELED SERIES
|
|
HD1 & HD5 DISC
|
|
22" 3/16 Blades on 7" Spacing
|
| Part
Number |
Description |
Required
HP |
Weight |
Retail
Price + Freight |
| 1622CP7HD1 |
DISC 5 - 5½' -
7" SP - HD1 FR |
50HP |
1100 |
$2,775.00 USD |
| 2022CP7HD1 |
DISC 6 -
6½' -
7" SP - HD1 FR |
60HP |
1230 |
$3,085.00 USD |
| 2422CP7HD5 |
DISC 7' -
7" SP - HD5 FR |
70HP
& UP |
1517 |
$3,179.00 USD |
| 2422CO7HD5 |
DISC 7' -
7" SP - HD5 FR |
1517 |
$3,179.00 USD |
| 2822CP7HD5 |
DISC 8' -
7" SP - HD5 FR |
1662 |
$3,505.00 USD |
| 2822CO7HD5 |
DISC 8' -
7" SP - HD5 FR |
1662 |
$3,505.00 USD |
| 3222CP7HD5 |
DISC 9' -
7" SP - HD5 FR |
1759 |
$3,665.00 USD |
| 3222CO7HD5 |
DISC 9' -
7" SP - HD5 FR |
1759 |
$3,665.00 USD |
|
|
22" 3/16 Blades on 9" Spacing
|
| Part
Number |
Description |
Required
HP |
Weight |
Retail
Price + Freight |
| 2022CP9HD5 |
DISC 7½' -
9" SP - HD5 FR |
70HP
& UP |
1482 |
$3,049.00 USD |
| 2022CO9HD5 |
DISC 7½' -
9" SP - HD5 FR |
1472 |
$3,049.00 USD |
| 2422CP9HD5 |
DISC 9' -
9" SP - HD5 FR |
1482 |
$3,215.00 USD |
| 2422CO9HD5 |
DISC 9' -
9" SP - HD5 FR |
1482 |
$3,215.00 USD |
| 2822CP9HD5 |
DISC 10½' -
9" SP - HD5 FR |
1641 |
$3,434.00 USD |

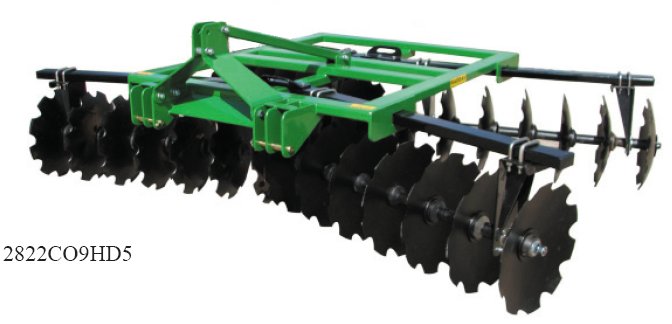

| 2822CO9HD5 |
DISC 10½' -
9" SP - HD5 FR |
1641 |
$3,434.00 USD |
** $90.00 ASSEMBLY CHARGE FOR HD1 &
HD5 SERIES
|
|
|
|
