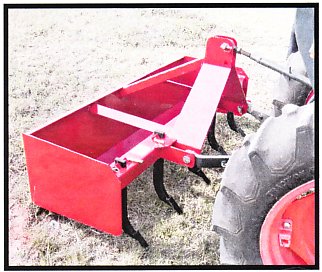

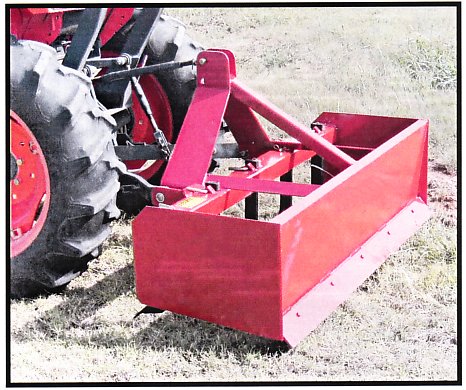

Han-Dee
|
|
The Han-Dee is custom
designed for small tractors. You can now have a Scarifier Scraper
that your tractor can handle without front weights on a light front end. The
Han-Dee can move more dirt for less money than other blades due to its custom
design.
|
|
V-Series design insures less bending, less breakage...
|
|
Both front and rear cutting edges are made of high carbon steel and are replaceable. The Han-Dee has a flotation feature on the rear cutting edge as standard equipment.
|
|
|
FEATURES:
- Comes complete with pins
- Solid rear cutting edge
- Plated fasteners
- High carbon steel cutting edge removable
& replaceable
|
SPECIFICATIONS:
MAIN BEAM IS 4' X 3" RECTANGULAR TUBING HITCH. ASAE CAT. 1
COMPATIBLE.
MOLDBOARD IS 3/16" FORMED STEEL PLATES AND 1/4" END PLATES.
SCARIFIER SHANK ARE MADE OF 3/4" x 2" WITH HIGH CARBON STEEL POINTS; 1/4"
END PLATES.
CUTTING EDGES ARE MADE OF 9/32" x 4" HIGH CARBON STEEL REPLACEABLE.
|
| PART
NO. |
SIZE |
NO.
SHANK |
APPROX.
CAPACITY |
WEIGHT |
| 522048 |
4' |
4
EACH |
10 CU.FT. |
267 |
| 522060 |
5' |
4
EACH |
10 CU.FT. |
306 |
| 522072 |
6' |
5
EACH |
12 CU.FT. |
343 |
|
|
|

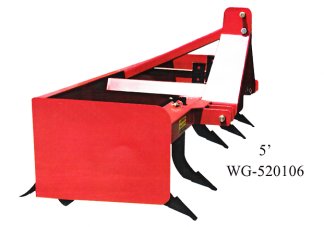

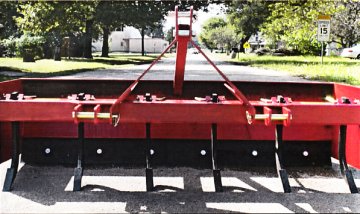

Scrape-Ezy (SE2 Box Blade)
|
|
The "Scrape-Ezy" is a very maneuverable
box blade that does the work of several implements- grade, level, drag, fill in
forward and backfill in reverse. The curved moldboard and double bevel curved
cutting edge cuts and rolls the material rather than drag it. Three hole
scarifier shanks for easier adjusting. They are held in place with pins for easy
adjustment and removal. The points (teeth) are made of heat-treated,
long-wearing alloy steel. Optional solid or hinged rear blade.
|
|
|
FEATURES:
- Comes complete with pins
- Solid rear cutting edge
- Plated fasteners
- High carbon steel cutting edge removable
& replaceable
- Optional hinged rear blade
|
SPECIFICATIONS:
| Model |
SE2-72 |
SE2-84 |
SE2-96 |
| Width |
6' |
7' |
8' |
| Bucket Capacity cu. ft. |
16 |
18 |
21 |
| Weight (lbs) |
472 |
523 |
574 |
| Shanks 3/4" x 2
1/2" |
6 |
7 |
8 |
|
|

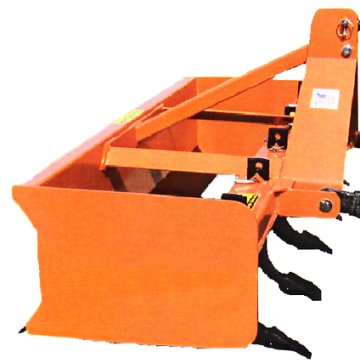

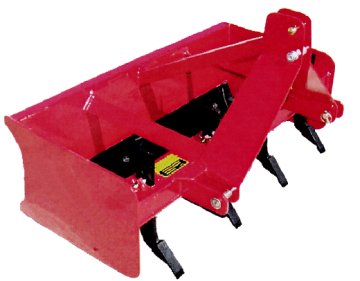

WE Box Blade--NEW
PRODUCT!!
|
|
|
FEATURES:
- Comes complete with pins and scarifiers
- Quick hitch adaptable
- Double bevel curved blades, front and rear
- Blades are center punched and reversible
|
SPECIFICATIONS:
- Cutting Edges: 3/8" center punch cutting edge
- Scarifier Shanks: 1/4" wall
thickness of scarifier tube
- Moldboard: 16 1/2" height;
17" with balde
- End Plate: 1/4" thickness
|
| Part
Number |
Size |
No.
of Scarifiers |
Approx.
Capacity |
Weight |
| WG-525048 |
4' |
4 |
10
cu. ft. |
308 |
| WG-525060 |
5' |
5 |
12
cu. ft. |
357 |
| WG-525072 |
6' |
6 |
15
CU. FT. |
404 |
|
|
PRICES
|
| Part
No. |
Description |
Wt.
(lbs.) |
Retail
Price (Add Freight) |
| 532481 |
BOX
BLADE-ESTATE II 48" 4SH-CAT 1 |
132 |
$410.00
USD |
| 522048 |
BOX BLADE-HANDEE II 4' W/4SH |
267 |
$485.00
USD |
| 522060 |
BOX BLADE-HANDEE II 5' W/5SH |
306 |
$535.00
USD |
| 522072 |
BOX BLADE-HANDEE II 6' W/6SH |
343 |
$615.00
USD |
| 520148 |
BOX BLADE- SE2 48 4' SOLID
REAR BLADE |
380 |
$685.00 USD |
| 520160 |
BOX BLADE- SE2 60 5' SOLID
REAR BLADE |
440 |
$735.00 USD |
| 520172 |
BOX
BLADE- SE2 72 6' SOLID REAR BLADE |
517 |
$865.00
USD |
| 520173 |
BOX
BLADE- SE2 72 6' HINGED REAR BLADE |
517 |
$920.00
USD |
| 520184 |
BOX
BLADE- SE2 84 7' SOLID REAR BLADE |
523 |
$945.00
USD |
| 520185 |
BOX
BLADE- SE2 84 7' HINGED REAR BLADE |
523 |
$1,000.00
USD |
| 520196 |
BOX
BLADE- SE2 96 8' SOLID REAR HINGED |
574 |
$1,050.00
USD |
| 520197 |
BOX
BLADE- SE2 96 8' HINGED REAR BLADE |
574 |
$1,140.00
USD |
| 525048 |
BOX BLADE- WE-4 SOLID REAR
BLADE |
308 |
$495.00 USD |
| 525060 |
BOX BLADE- WE-5 REAR BLADE |
357 |
$510.00 USD |
| 525072 |
BOX BLADE- WE-6 REAR BLADE |
404 |
$605.00 USD |
|
|
|
