V - Series
Tree Shears:
Tractor Mount and Skid Steer
|

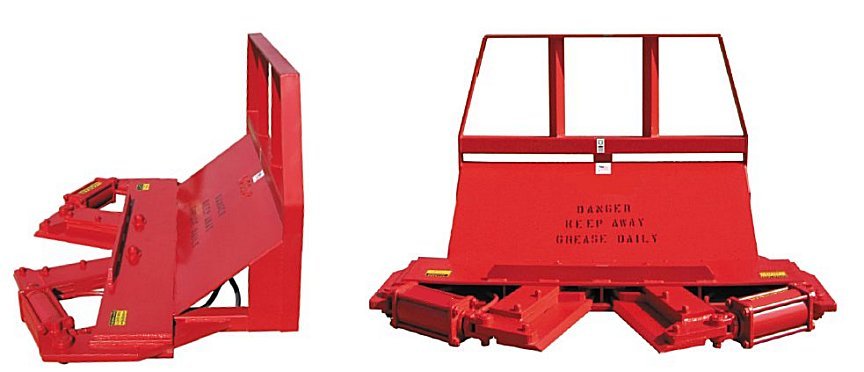

Tractor Mount
Cut small or large trees
up to 7" , 10", or 12" diameter respectively; 35-50HP, 13-15
GPM
|
|
- Mounting bracket kits available
for quick attach and pin-type front loaders, 3-point and skid
steer.
- Shear blades are heavy duty,
specially developed and angled for best cutting performance.
The blades are carried on heavy duty steel bars for extra strength. Blades can be sharpened as needed with a hand grinder.
- Brush guard is standard
equipment.
|
|
SPECIFICATIONS:
|
| |
Model
TM-3 |
Model
TM-4 |
Model
TM-5 |
| Main frame |
1/4"
steel plate |
3/8"
steel plate |
3/8"
steel plate |
| Blades |
1/2"
x 6" |
3/4"
x 8" |
3/4"
x 10" |
| Cylinder |
3"
dia. x 6" stroke |
4"
dia. x 6" stroke |
5"
dia. x 8" stroke |
| Cylinder rods |
1
1/2" dia. |
2"
dia. |
2"
dia. |
| Shear capacity |
7"
dia. |
10"
dia. |
12"
dia. |
| Approx. weight |
660
lbs |
1040
lbs |
1470
lbs |
|
Optional: Stump Sprayer Nozzle
SS Hydraulic Pressure—2000 to 3000 psi, 12 to 18 gpm hydraulic fluid.
Comes with cylinders and hoses from tee to cylinder.
Hoses from the Tractor unit to the Tree Shear are not included.
TM* Mounting bracket must be added•
|

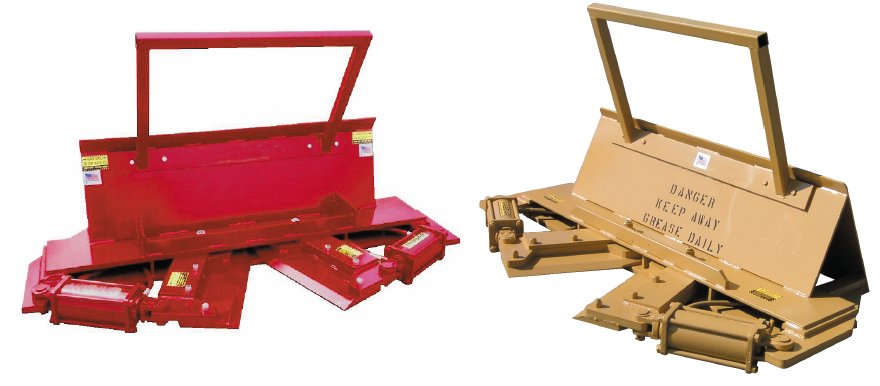

Skid Steer
For commercial and farm operations
|
Shear blades are heavy duty, specially developed and angled for best cutting performance. The blades are carried on heavy duty steel bars for extra strength. Blades can be sharpened as needed with a hand grinder.
• Brush guard is standard equipment.
|
|
|
SPECIFICATIONS:
|
|
Model SS-3 |
Model
SS-4 |
Model
SS-5 |
Model SS-6 |
| Main
Frame: |
¼"
Steel Plate |
3/8"
Steel Plate |
3/8"
Steel Plate |
3/8"
Steel Plate |
| Blades: |
1/2"
x 6" |
3/4" x 8" |
1" x 10" |
1"
x 12" |
| Weight: |
760 lbs. |
1040 lbs. |
1500 lbs. |
1750 lbs. |
| Cylinder |
3" Dia. x
6" Stroke |
4" Dia. x 6" Stroke |
5" Dia. x 8" Stroke |
5" Dia. x
8" Stroke |
| Cylinder
Rods: |
1
1/2"
Diameter |
2"
Diameter |
2"
Diameter |
2"
Diameter |
| Shear
Capacity: |
7"
Diameter |
10"
Diameter |
12"
Diameter |
16"
Diameter |
| Options
Available: |
Stump Sprayer
Nozzle
|
NOTES:
- Tractor
Hydraulic Pressure- 2000 to 3000 psi, 12 to 18 gpm Hydraulic Fluid
- Comes
complete with hoses from tee to cylinders, cylinders, and mounting pins.
DOES NOT include hoses from the tractor unit to the tree shear.
|
Optional: Stump Sprayer Nozzle
SS Hydraulic Pressure—2000 to 3000 psi, 12 to 18 gpm hydraulic fluid.
Comes with cylinders and hoses from tee to cylinder.
Hoses from the Tractor unit to the Tree Shear are not included.
|
|
PRICES
|
| Part
No. |
Description |
Required
HP |
Wt. |
Retail
Price (Add Freight) |
| 391100 |
TREE
SHEAR #3 TRACTOR MOUNT (Max. 7" trees) |
35-50HP
(13-15 GPM) |
700 |
$3,495.00
USD (plus mounting bracket) |
| 391101 |
TREE
SHEAR #4 TRACTOR MOUNT (Max. 10" trees) |
1080 |
$5,025.00
USD (plus mounting bracket) |
|
391102
|
TREE
SHEAR #5 TRACTOR MOUNT (Max. 12" trees) |
1520 |
$5,950.00
USD (plus mounting bracket) |
|
393100
|
SPRAYER ATTACHMENT |
6 |
TBD |
|
| Part
No. |
Description |
Required
HP |
Wt. |
Retail
Price (Add Freight) |
| 391105 |
TREE
SHEAR MODEL SS-3 SKID STEER (Max. 7" trees) |
35-50HP
(13-15 GPM) |
760 |
$3,825.00
USD |
| 391103 |
TREE
SHEAR MODEL SS-4 SKID STEER (Max. 10" trees) |
1040 |
$5,285.00
USD |
| 391104 |
TREE
SHEAR MODEL SS-5 SKID STEER (Max. 12" trees) |
1500 |
$6,185.00
USD |
| 391106 |
TREE SHEAR MODEL
SS-6 SKID STEER (Max. 16" trees) |
1760 |
$8,025.00
USD |
| 393100 |
SPRAYER ATTACHMENT
NOZZLE |
--- |
6 |
TBD |
|
|
Mounting
Bracket Kits for Front Loaders, 3 points
Required for (*TM) Tree
Shear, Grapples, Buckets, Bale Spears, and Pallet Forks
|
|
| Part
# |
Description |
Wt.
Approx. |
Retail
Price (Add Freight) |
| 392100 |
Universal
- Pin Type Mounts |
65
|
$260.00
USD |
| 392101 |
Universal
- Pin Type & 3 Point Mounts |
76
|
$295.00
USD |
| 392102 |
Top
Link Bracket |
11
|
$45.00
USD |
| 392103 |
Universal
Skid
Steer - Bolt On |
150
|
$354.00
USD |
| 392104 |
Universal
Skid
Steer - Weld On Mount |
80
|
$345.00
USD |
| 392105 |
Universal
Skid
Steer - Extended Weld On |
---
|
$335.00
USD |
| 392106 |
Allied
- Quick Attach (pair) 395, 495, 595,
695, 795 |
76
|
$385.00
USD |
| 392107 |
Allied
- QA (pair) 895 & 995 |
98
|
$455.00
USD |
| 392110 |
Bush
Hog 2425-2440-2445 |
70
|
$250.00
USD |
| 392111 |
Bush
Hog - Semi QA (pair) 2346-2426-2446-2846-
M346, M446, M546 |
74
|
$450.00
USD |
| 392112 |
Bush Hog QT 3226-3446 |
80
|
$445.00
USD |
| 392113 |
Case -
IHC L300-510-520-890 |
55
|
$250.00
USD |
| 392114 |
Case -
IHC - QA (pair) 2250-2255-2350-2450 |
64
|
$305.00
USD |
| 392117 |
Bush
Hog-QA 3860QT, Case-IH 56L, Great Bend 330-360-440-660-760-770-860-870-880-3424-2140-2144-2157-2166-M110,
Kubota w/quick coupler (M1000-M1250-M1275-M1410) |
55
|
$315.00
USD |
| 392119 |
John
Deere - QA (pair) 240-245-260-265 |
98
|
$390.00
USD |
| 392120 |
John
Deere - QT 300-300CX-400X-410-420-430-440-460 |
55
|
$390.00
USD |
| 392121 |
John
Deere - QT 520-521-540-541-542 |
55
|
$390.00
USD |
| 392122 |
John
Deere - QT 620-640-720-721-725-726-740-741-746-QA |
110
|
$590.00
USD |
| 392123 |
John
Deere - Pin Type (pair) 620-640-720-725-740 |
98
|
$585.00
USD |
| 392124 |
John Deere - QA 280 |
88
|
$370.00
USD |
| 392128 |
Koyker
- QA (pair) 300-310-345-400-500-510--545-550-565-585-600-645 |
71
|
$495.00
USD |
| 392130 |
Kubota
- QA (pair) LA1001-LA1002 |
55
|
$385.00
USD |
| 392131 |
Koyker -QA 210 |
84 |
$495.00 USD |
| 392132 |
Massey
Ferguson - QA (pair) 232-236-832-838-838SL-932-1032 |
88
|
$300.00
USD |
| 392133 |
Massey
Ferguson - QA (pair) 238-246-848-938-948-1036-1038-1038SL-1048-1048SL |
109
|
$305.00
USD |
| 392135 |
New
Holland - Pin Type 7209-7210-7309-7310-7410 |
83
|
$410.00
USD |
| 392136 |
New
Holland - QA (pair) 7312-7314-7411-7412-7412HD-7413-7511-72LA-(NOT
ULF-246) RHINO-114Q-124Q-124QX-134Q-2411-2412-2414A |
86
|
$285.00
USD |
| 392137 |
New
Holland - QA (pair) 7210-7309-7310-7410HD |
95
|
$355.00
USD |
| 392140 |
Westendorf
- QA (pair) TA26-TA27-TA28-TA29-TA45-TA46-TA48-TA76-TA77
-TA340-XTA400-WL42-WL44-WL46-WL64- |
74
|
$290.00
USD |
| 392143 |
Woods
Dual 255 & Spee D
|
42
|
$390.00
USD |
| 392145 |
MT Memo |
69
|
$380.00 USD |
| 392146 |
Mount- Zetor
/ JD Global (Euro Style) |
42
|
$385.00
USD |
| 392147 |
KD Quick Attach`
|
88
|
$395.00
USD |
| 392148 |
EURO
Style Mounts
|
---
|
$360.00
USD |
| 392150 |
Koyker K-5 QT |
---
|
$585.00 USD |
| 392151 |
Kubota LA 682 QT |
67
|
$560.00 USD |
| 392155 |
QT
Conversion Hitch
|
---
|
$550.00
USD |
| 392160 |
Kubota LA1251-LA1301-LA1601 |
58
|
$440.00 USD |
| 392165 |
Allied 2495 S&SL,
2595 S&SL, 2596 S&SL, 2795 S&SL, 2895 S&SL |
118
|
$540.00
USD |
| 392166 |
John Deere 148-158 |
75
|
$382.00
USD |
|
|
|
