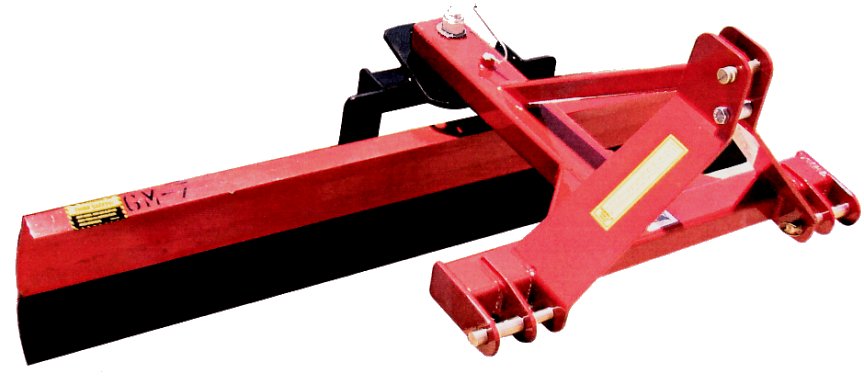

V - Series "Grade-Mor" Blades
For leveling, backfilling, grading, snow removal, and road building
|
|
|
Main
Frame is Formed Welded Box Construction giving maximum design strength at
critical stress points. Extra depth at hinge tube and extra width on front of
main frame.
|
|
Click image to enlarge
Click image to enlarge
|
FEATURES:
-
7 Angular
adjustments
-
3 Pitch
adjustments
-
Full 360°
rotation (completely reversible)
-
Offsets
12" to either side of center
-
Fully
guaranteed
-
Cutting
angle easily and quickly into position by pin
-
Cutting
Edge reversible for double life and less downtime--removable and replaceable
for economy
-
Curved
cutting edge for smoother and easier operation
|
SPECIFICATIONS:
Weight: Approximate 288 lbs.
Moldboard: 5/16" thick x 12½" x 6' long
Moldboard Kingpin and Bearing: 3½" diameter
Frame: Formed
welded box construction with removable 7/8" hitch pins
Maximum Tractor
HP recommended: 30
Cutting Edge:
½" x 6" x 6', alloy steel, center punched, reversible, removable and
replaceable. |
|
|
|
PRICES
|
|
| Part
No. |
Description |
Weight
(lbs) |
Retail
Price + Freight |
| 531006 |
REAR
BLADE - GRADE MOR 6' |
272 |
$462.00
USD |
| 531007 |
REAR
BLADE - GRADE MOR 7' |
298 |
$498.00
USD
|
|
|
)
)
