| FARM
TRACTORS |
| FACTORY-DIRECT |
| ONLY
EPA APPROVED TRACTORS CAN BE SOLD IN USA |
|
|
TC254
· TC404
· TC454
Brand new; directly from the factory with front loader and back hoe
attachment; shipped to

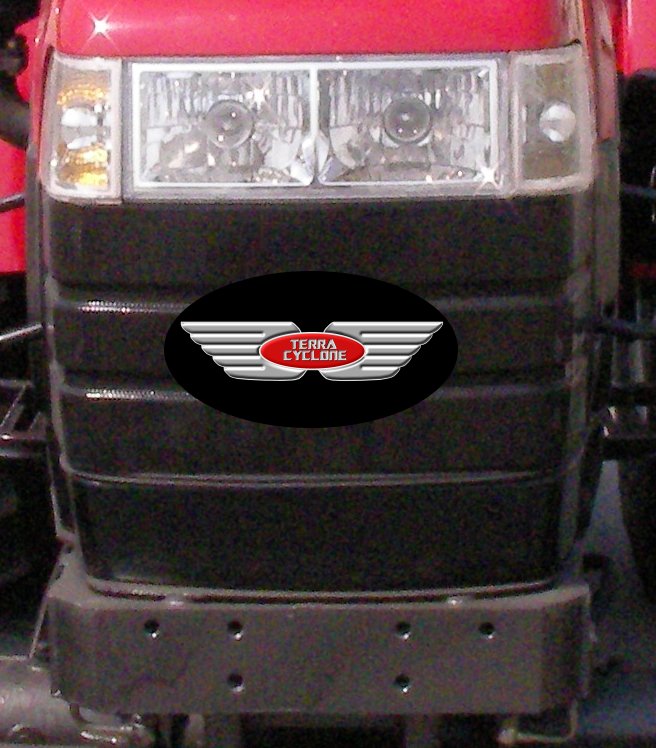

the nearest port. Terra Cyclone 4 WD tractors factory direct with full one year parts warranty.
Full hydraulics, folding roll bar, ag tires, and canopy.
Financing and leasing are available to qualified buyers.
Contact Walt Barrett
wbarrett1@aol.com or 401 725 8141
We are located in Rhode Island |
|
|
|

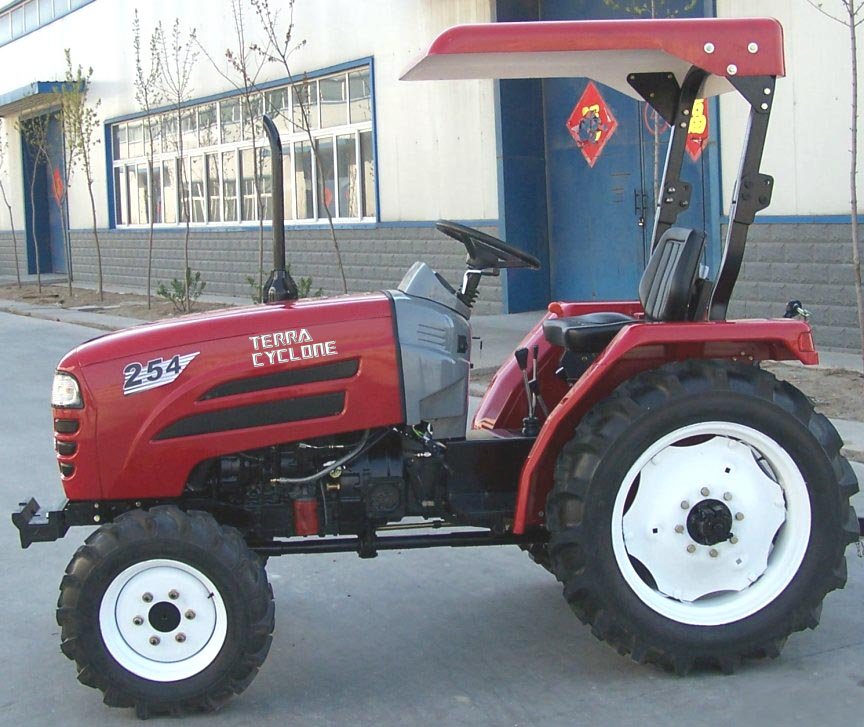

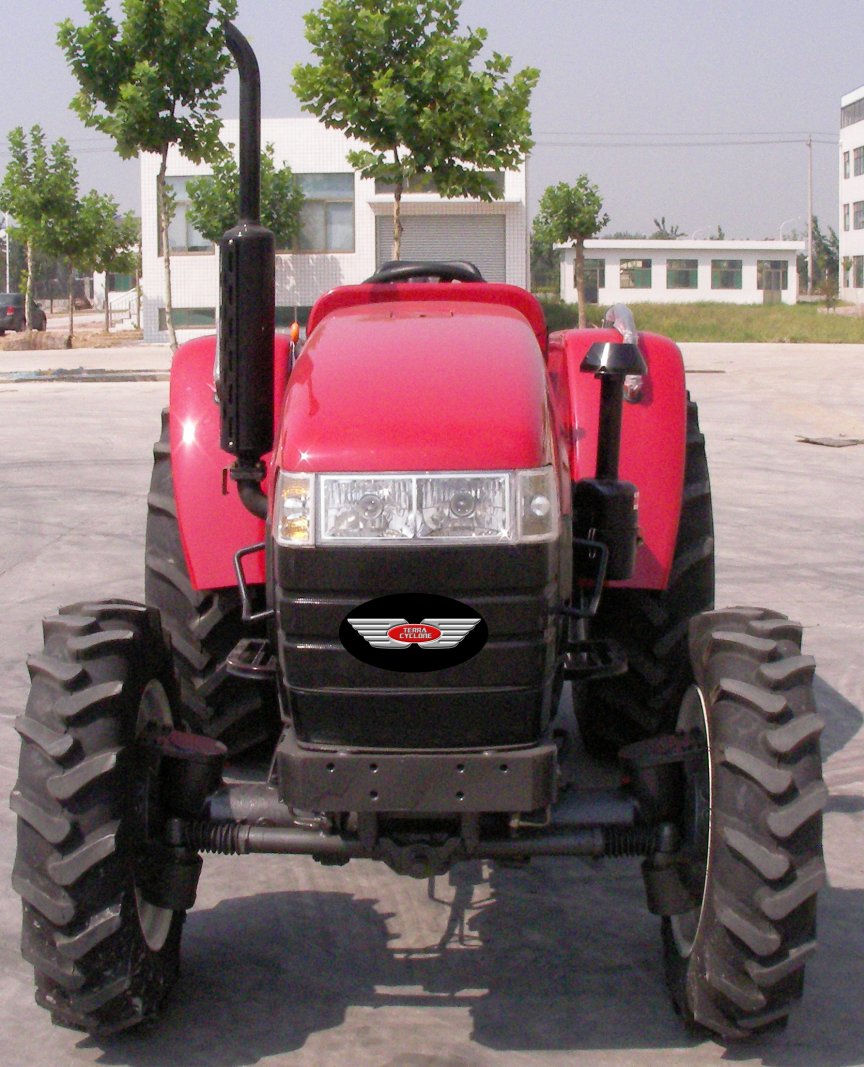

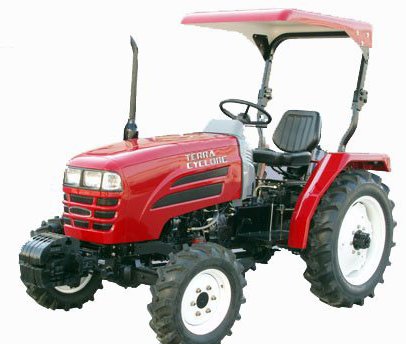

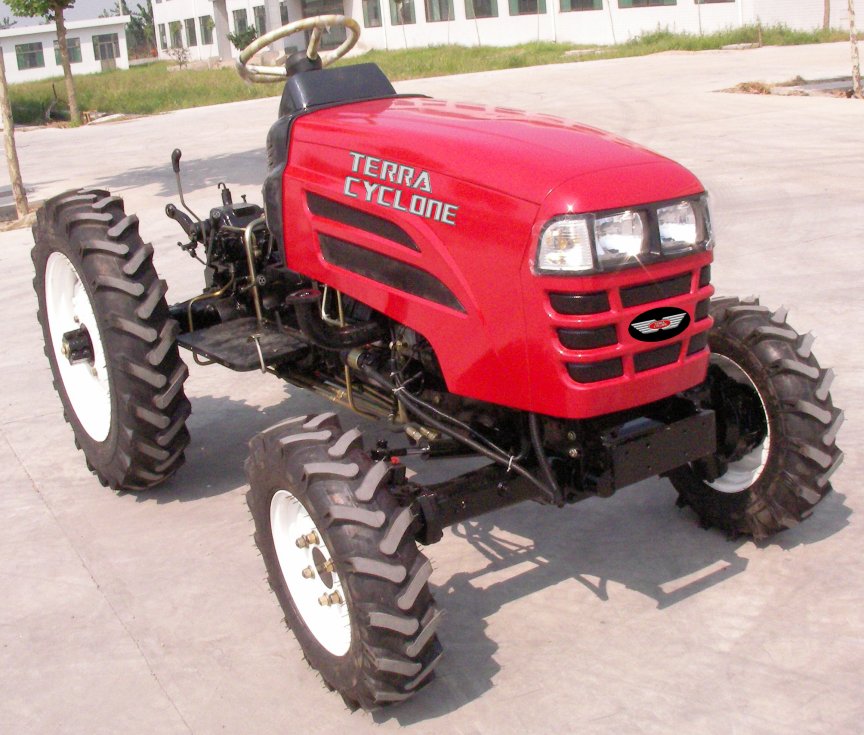

TC254
/ TC284 / TC304 |
| Features:
4WD · EPA
Approval (TC254 ONLY) ·
3
Cylinder · ag
tires ·
Front and Rear Ballast ·
Power Steering ·
Dual-stage Clutch ·
Multi-way Valve ·
540/1000 PTO ·
Shuttle Shift ·
Rollbar & Canopy ·
Hitch · Swing
Drawbar ·
Luxury Spring Seat and Safety Belt ·
Combined Instruments Panel ·
Iron Frame Packing |
Click each to enlarge
|
|
|
TC254-TC284-TC304 Tractors Main
Technical Specifications
Structure and
specification are subject to change
without notice. |
| Model |
TC254 |
TC284 |
TC304 |
|
Type |
4WD Wheeled Type |
| (mm)
Dimensions of Tractor |
Length
(to front ballast) |
3030 |
| Width |
1470 |
| Height
(to the exhaust vent) |
1900 |
|
Tread |
Front
Wheel |
1215
Fixed or 1150~1215 Adjusted |
| Rear
Wheel |
1300
Fixed or 1300~1350 Adjusted |
| Axle
Base |
1710 |
| Min.
Ground Clearance |
347.5 |
| Structure
weight (kg) |
1130 |
Ballast
weight
(kg) |
Front
ballast |
56 |
| Rear
ballast |
112 |
| Rated
traction force (kg) |
551 |
591 |
663 |
| Engine |
Model |
385 |
390/485 |
| Type |
Vertical,3-Cylinder,Water
Cooled and 4-stroke |
| Rated
Power (kW) |
18.3 |
20.5 |
22 |
| Rated
speed (r/min) |
2400 |
| Fuel |
Diesel |
| Tires |
Front
Wheel |
6.00-14 |
| Rear
Wheel |
9.5-24 |
| Clutch |
Dual-stage
clutch |
| Steering |
power
steering |
| Transmission
Type |
8+2
or 8+8 with shuttle gearshift or 16+4 with
creeper shift |
| Suspension
Type |
3-point
links |
| PTO |
Type
and Rev |
Semi-independent
Type 540/1000 |
| Spline
Size |
F35
Rectangle Spline with 6 teeth |
|
|
|
|
|

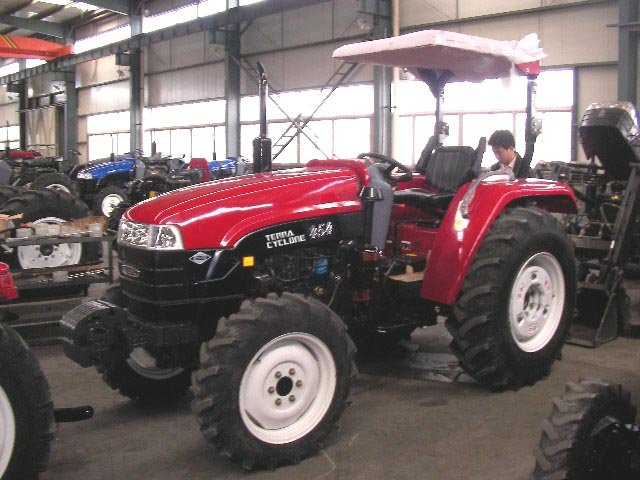

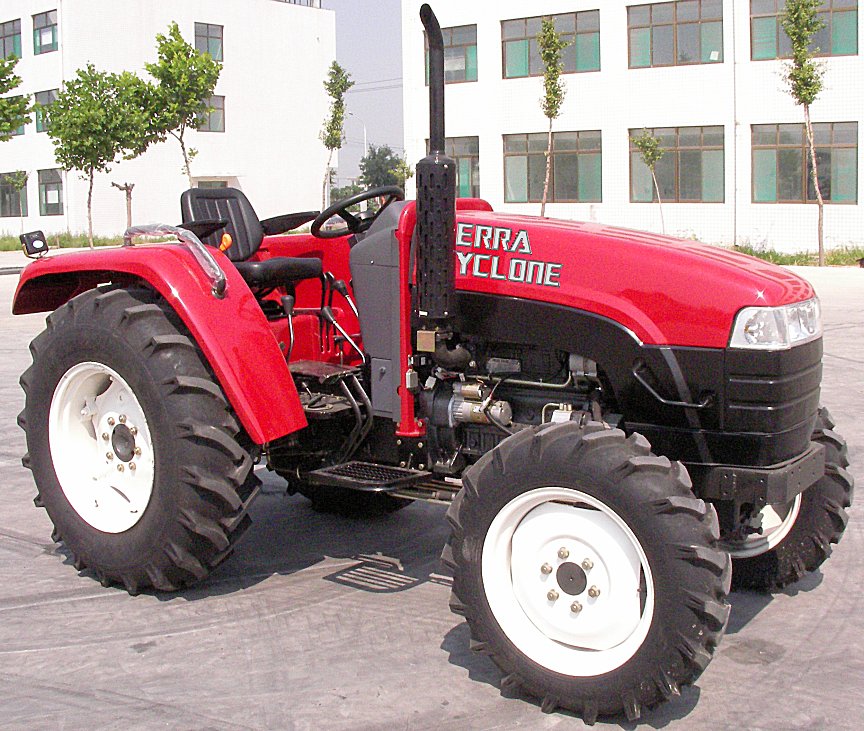

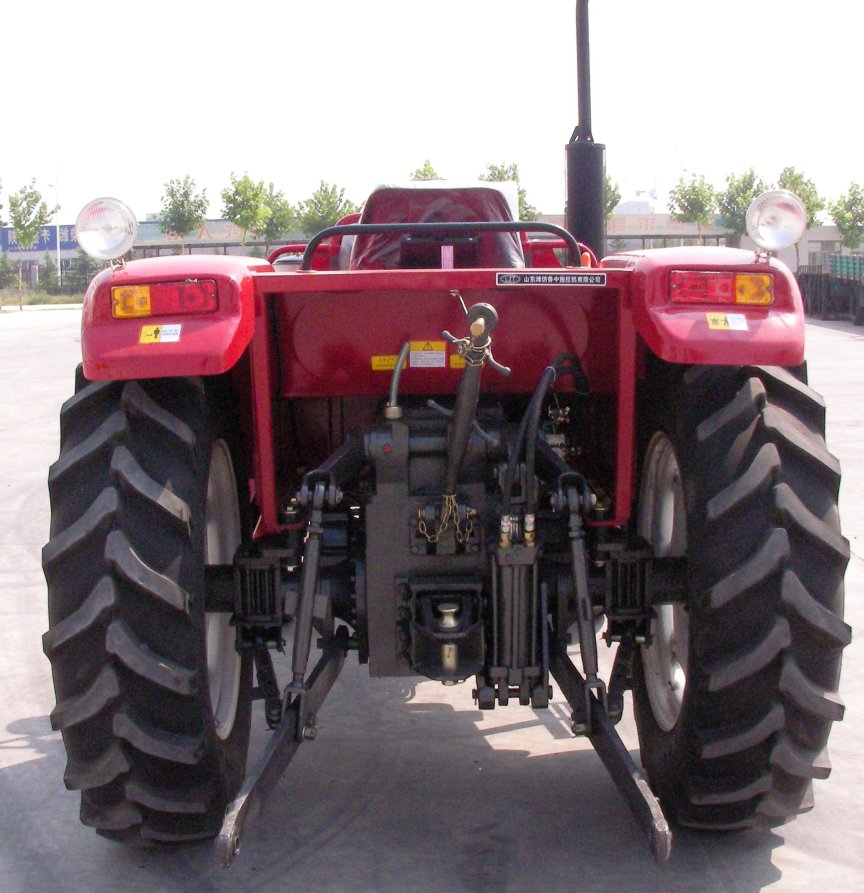

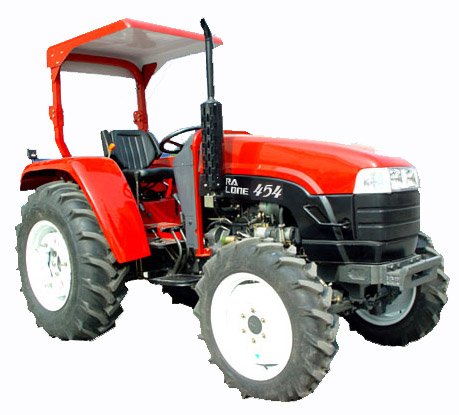

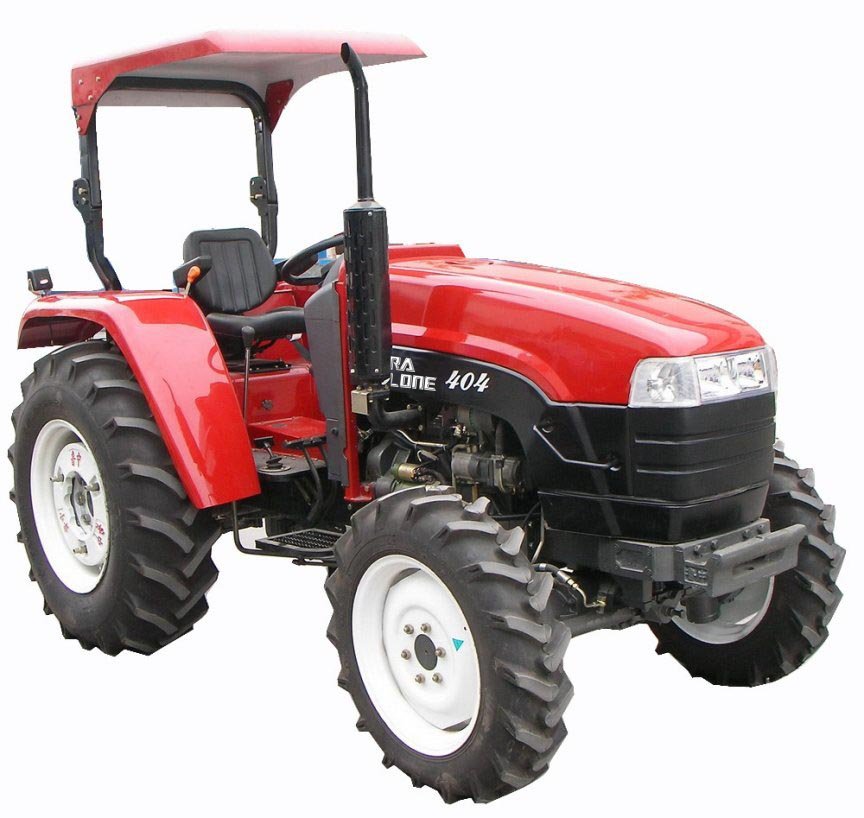

TC404
/ TC454/ TC554 |
| Features:
4WD · EPA
Approval (TC404 & 454 ONLY) ·
4 Cylinder ·
Front and Rear Ballast ·
Power Steering ·
Dual-stage Clutch ·
Multi-way Valve ·
540/1000 PTO ·
Shuttle Shift ·
Rollbar & Canopy ·
Hitch · Swing
Drawbar ·
Luxury Spring Seat and Safety Belt ·
Combined Instruments Panel ·
Iron Frame Packing ·
Reinforced AG Tire 14.9-24 |
|
Click
each to enlarge |
 |
 |
 |
 |
 |
 |
 |
 |
|
TC404-TC454-TC554 Tractors Main
Technical Specifications
Structure and
specification are subject to change
without notice. |
| Model |
TC404 |
TC454 |
TC554 |
|
Type |
4WD Wheeled Type |
| (mm)
Dimensions of Tractor |
Length
(to front ballast) |
3835 |
3847 |
| Width |
1620 |
1750 |
| Height
(to the exhaust vent) |
2220 |
2135 |
2130 |
|
Tread |
Front
Wheel |
1280 |
1250 |
| Rear
Wheel |
1300
Fixed or 1200~1500 Adjusted |
| Axle
Base |
2030 |
2073 |
| Min.
Ground Clearance |
325 |
| Structure
weight (kg) |
1665 |
1790 |
Ballast
weight
(kg) |
Front
ballast |
140 |
168 |
| Rear
ballast |
200 |
300 |
| Rated
traction force (kg) |
1100 |
1130 |
1180 |
| Engine |
Model |
3105/490 |
495 |
4105 |
| Type |
Vertical,4-Cylinder,Water
Cooled and 4-stroke |
| Rated
Power (kW) |
29.4 |
33 |
40.4 |
| Rated
speed (r/min) |
2400 |
| Fuel |
Diesel |
| Tires |
Front
Wheel |
8.3-20 |
| Rear
Wheel |
12.4-28 |
| Clutch |
Dual-stage
clutch |
| Steering |
power
steering |
| Transmission
Type |
8+4
or
8+8 with shuttle gearshift or (8+4)×2
with creeper shift |
| Suspension
Type |
3-point
links |
| PTO |
Type
and Rev |
Semi-independent
Type 540/1000 |
| Spline
Size |
F35
Rectangle Spline with 6 teeth |
|
|
|
|
