WOOD CHIPPERS

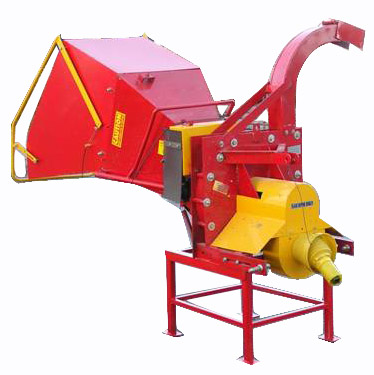

WC-6

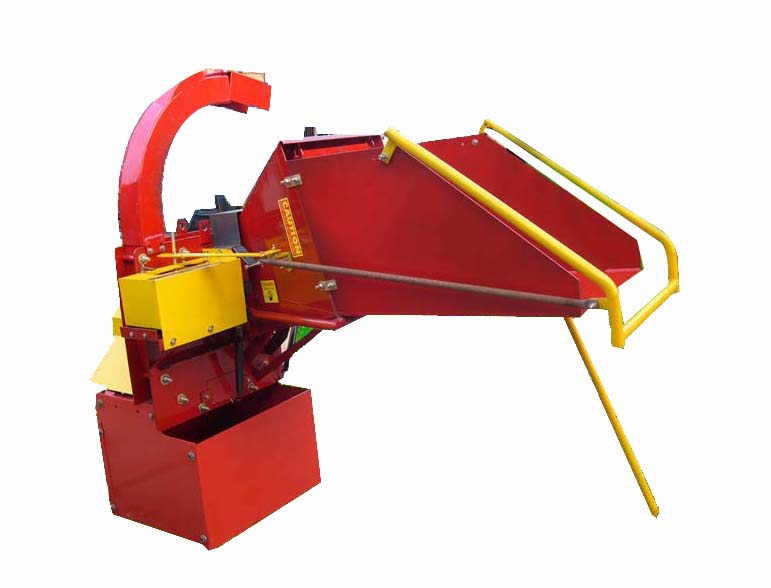

WC-8


MODEL WC-6 WC-8
DIMENSIONS (L x W x H) 1600 x 1020 x 1400mm
STRUCTURE WEIGHT 370KG  370KG
MAX. CHIPPER DIAMETER 6in. 8in.
BLADE TURNING RADIUS  302mm 302mm
CHIPPER MAX RADIUS 150mm 200mm
CHIPPER EFFICIENCY 7~8m3/h 8~9m3/h
INPUT TURNING SPEED 540rpm 540rpm
PTO SPLINE 6 x 6 x 520 6 x 6 x 520
POWER REQUIRED  18HP~45HP 25HP~45HP
PRICE (FOB QINGDAO)

If with hydraulic feeding system working with PTO of tractor: add extra cost.

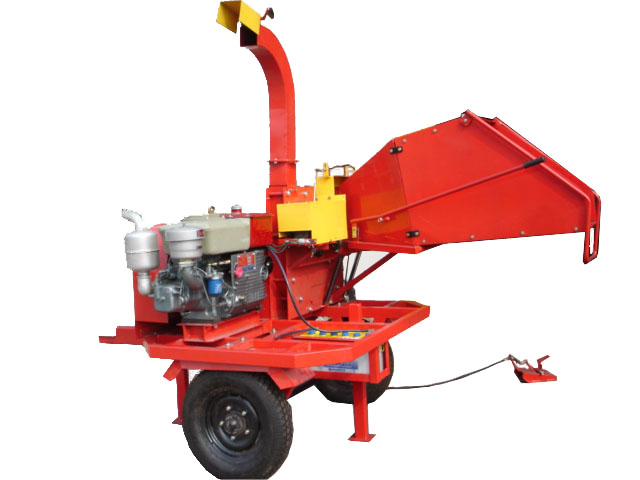

WC-12     WC-18X


WC-18 with 18Hp diesel engine, single cylinder, 3 Bladed, 6" Diameter Capacity, Powered by 18 hp single cylinders Electric start diesel engine, Equipped with turning lights, easy discharge hood, 2" Ball Hitch & Safety Chains and leaf spring on the axle.

FOB Qingdao
Using hydraulic feeding roller additional cost:

MODEL WC-12 WC-18
DIMENSIONS (L x W x H) 1600x1100x1400mm 1700x1100x1200mm
STRUCTURE WEIGHT 370KG  370KG
MAX. CHIPPER DIAMETER 6in. 8in.
BLADE TURNING RADIUS  302mm 302mm
CHIPPER MAX RADIUS 150mm 200mm
CHIPPER EFFICIENCY 4~7m3/h 5~9m3/h
INPUT TURNING SPEED 540rpm 540rpm
POWER REQUIRED  Self-powered 12hp diesel engine Self-power 18hp diesel engine

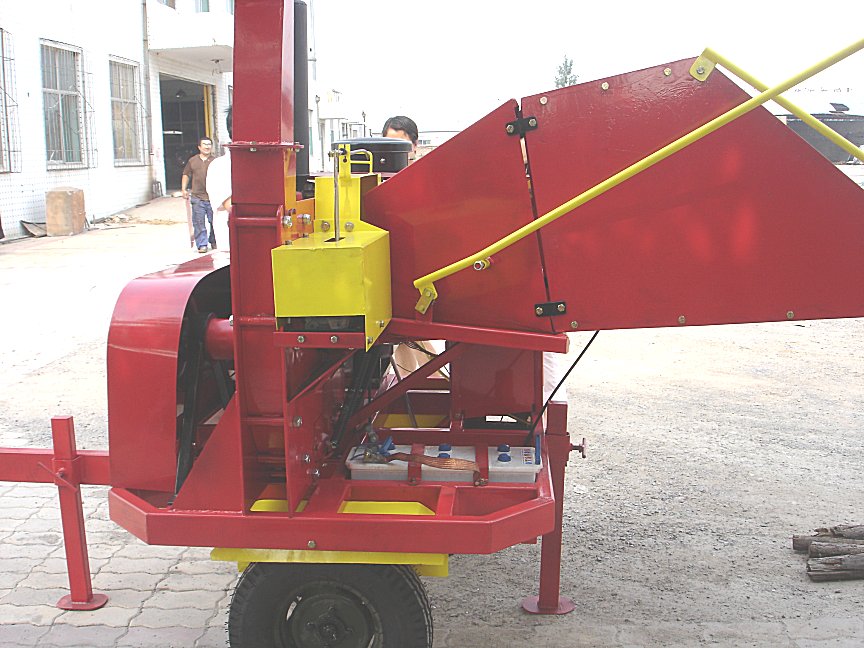

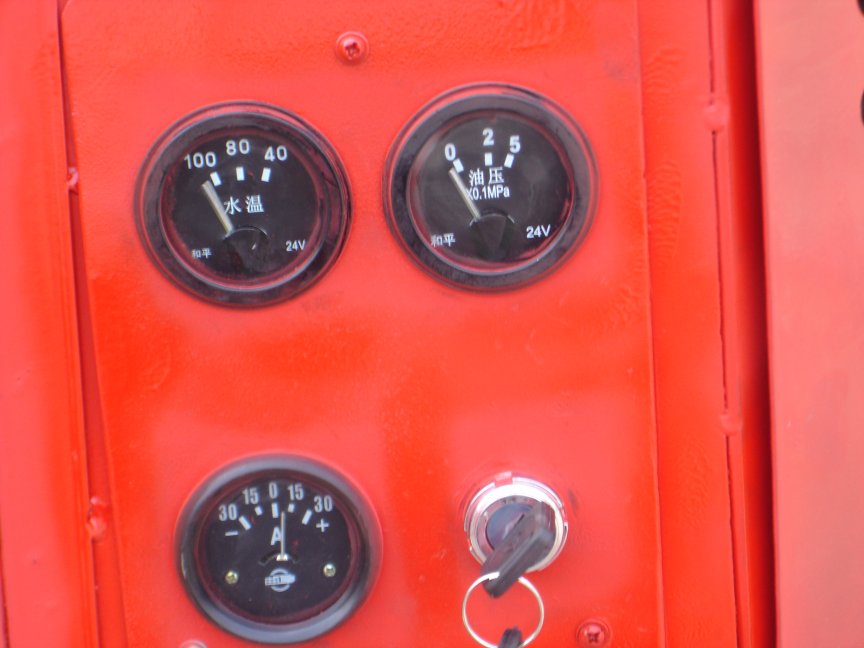

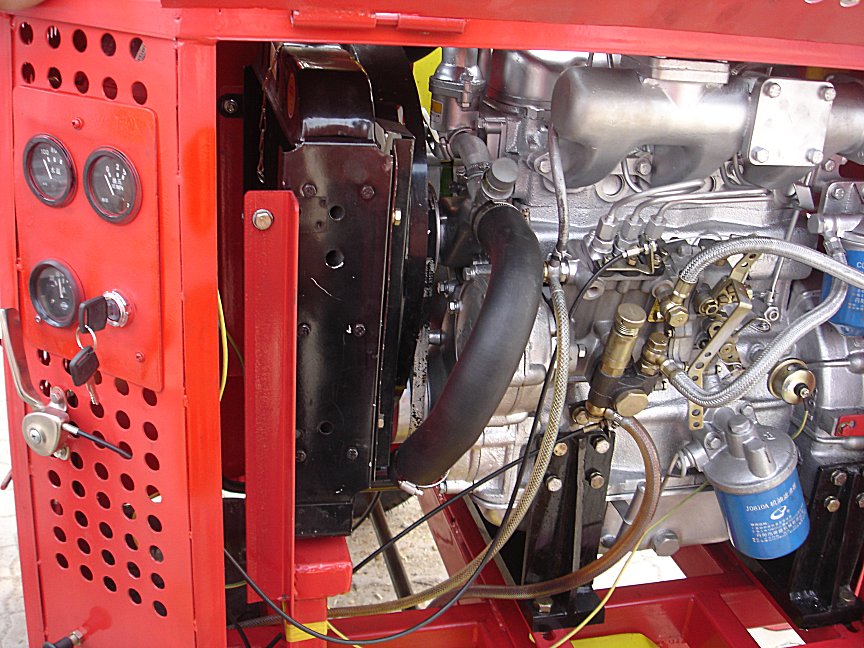

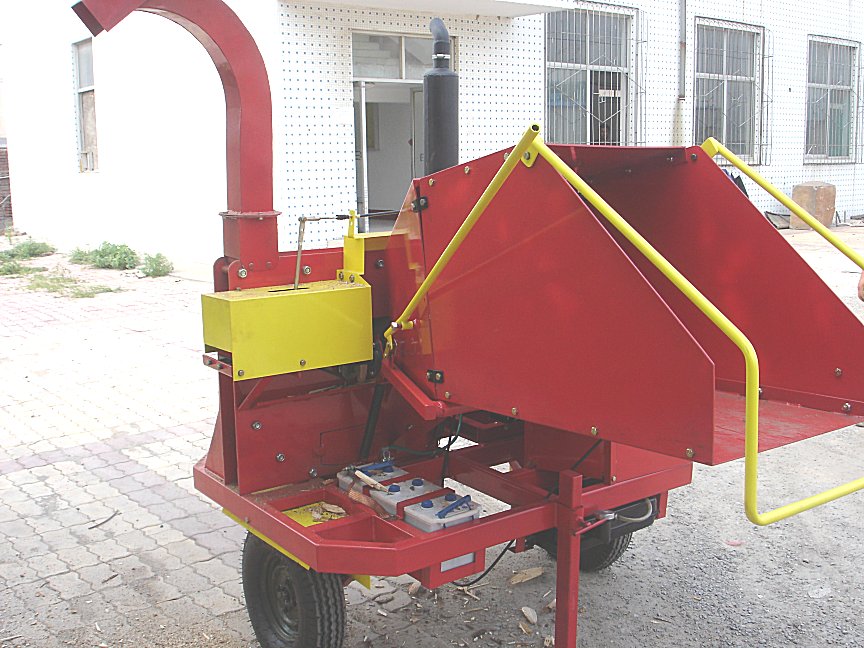

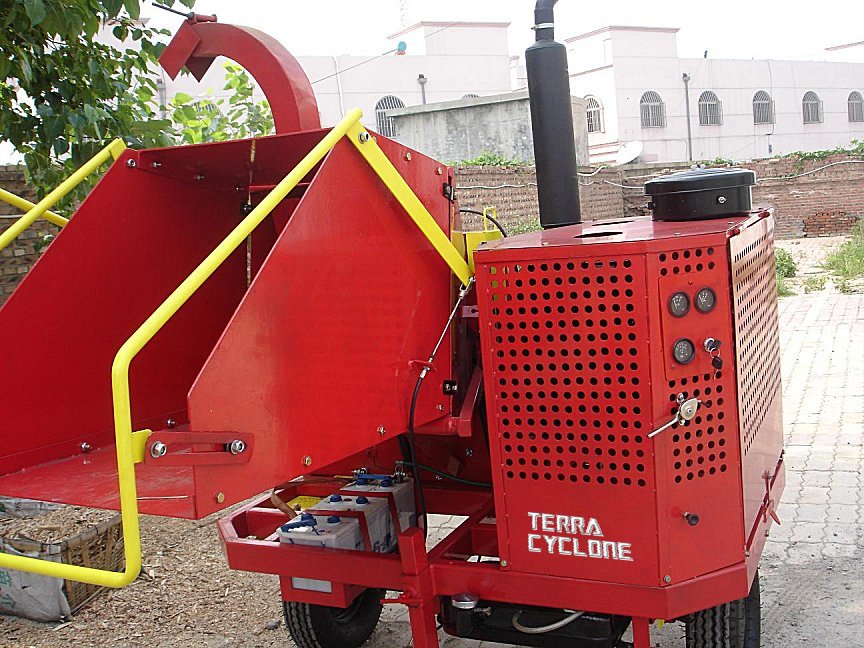

WC-30

wc-30a.jpg (163340 bytes) wc-30b.jpg (137150 bytes) wc-30c.jpg (122103 bytes) wc-30d.jpg (157810 bytes) wc-30e.jpg (66176 bytes)
MODEL WC-30
DIMENSIONS (L x W x H) 1650mm x 1350mm x 1550m
STRUCTURE WEIGHT 640kg
BLADE TURNING RADIUS  604mm
CHIPPER MAX RADIUS 8in.
CHIPPER EFFICIENCY 5m3-9m3/h
INPUT TURNING SPEED 1080r/m
OIL CONSUMPTION :   2.77 L/H
PRICE: $4,995 plus shipping

WS-30A

WS-30A:  Trailer Mounted Wood chipper, dual hydraulic feeding roller, 3 Bladed, 8" Diameter Capacity, Powered by 30 hp 3 cylinders Electric start diesel engine, Equipped with turning lights, easy discharge hood, 2" Ball Hitch & Safety Chains and leaf spring on the axle.

With CE certificate.
EPA approval engine: extra
