TRACTORS GENERATORS   POWER EQUIPMENT AND MORE
 AT DISCOUNT PRICES!




















Our Connecticut Dealer
cell phone:
860-861-1022


Jinma Diesel Tractors
20HP-75HP; 2&4WD
These are the tractors we are promoting for the U.S. market because they have the quality and features expected from U.S. buyers. UP TO 35HP TRACTORS ARE EPA APPROVED! Financing and leasing are available to qualified buyers.

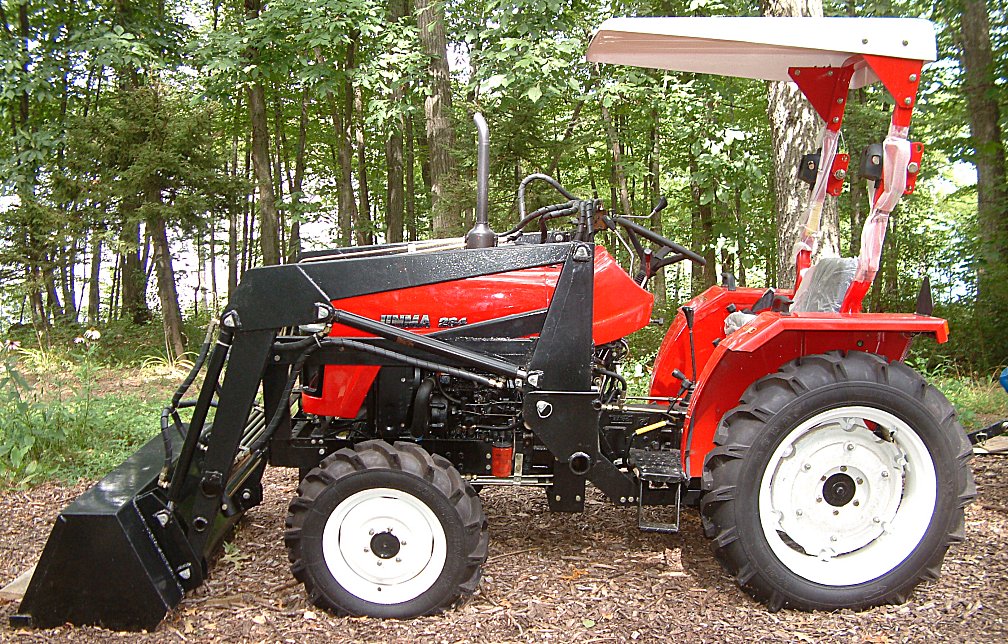

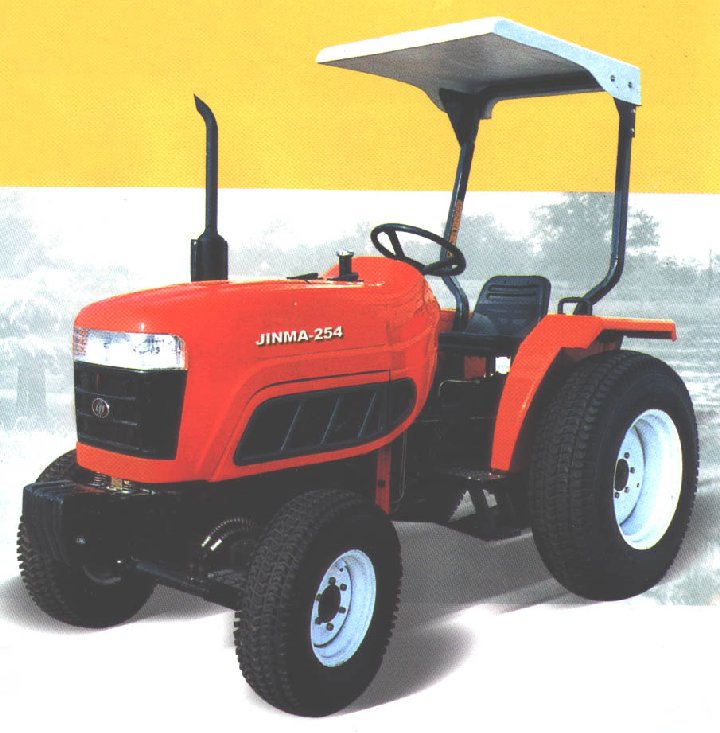

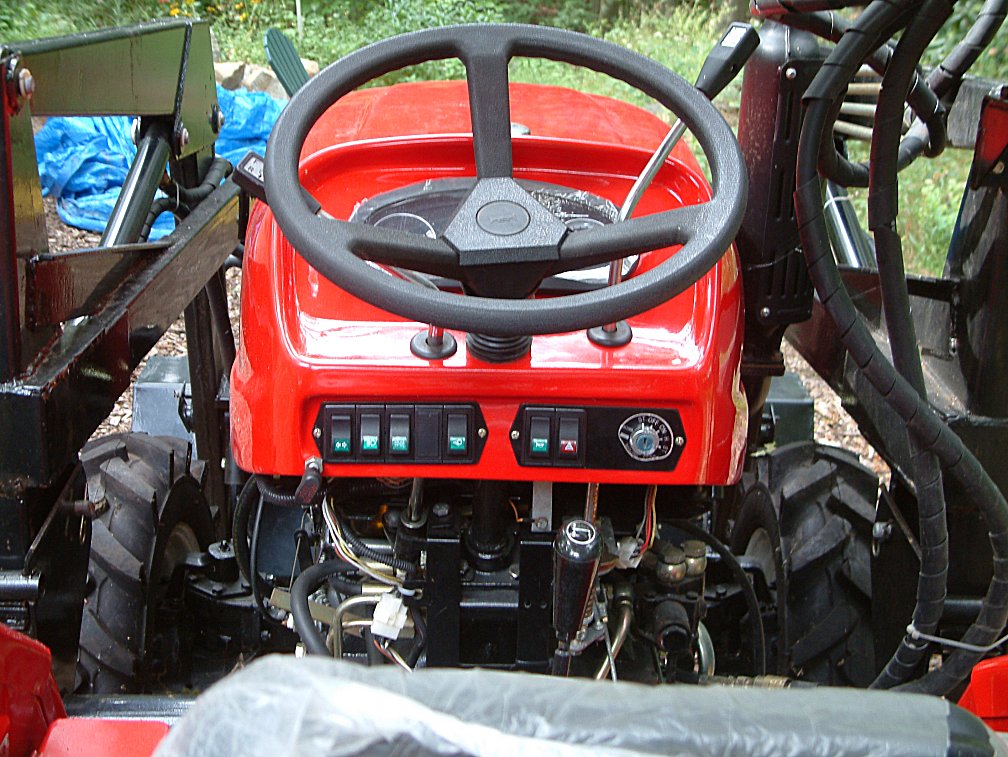

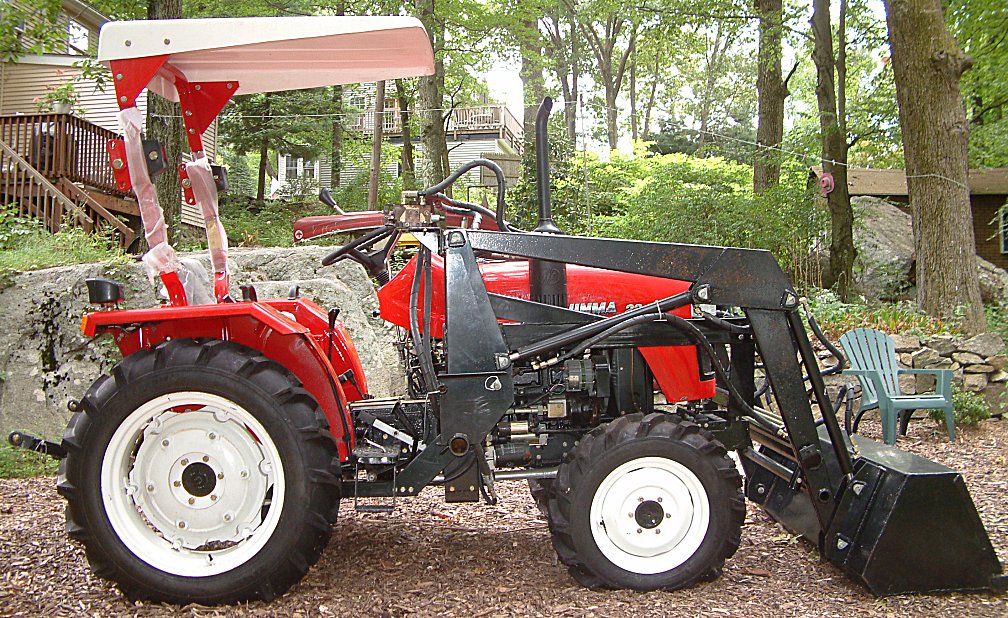

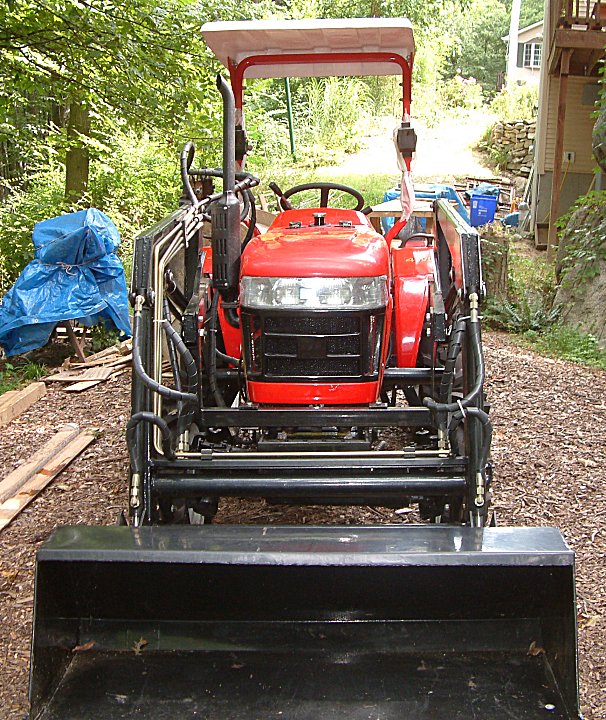

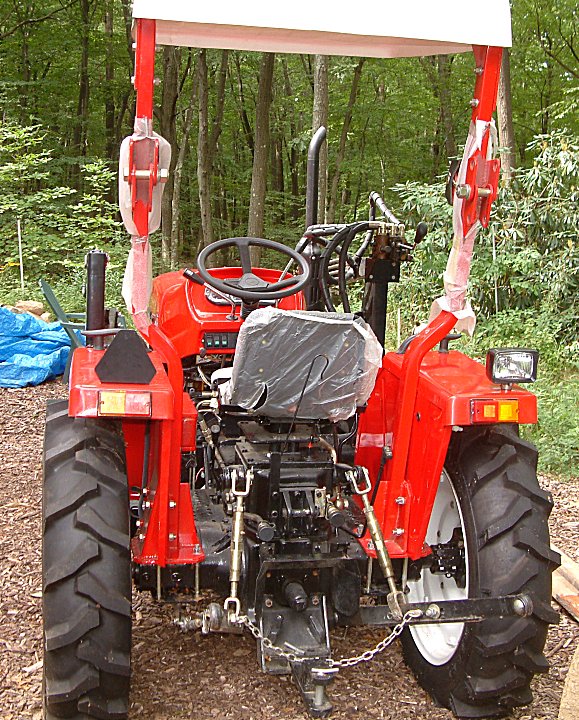

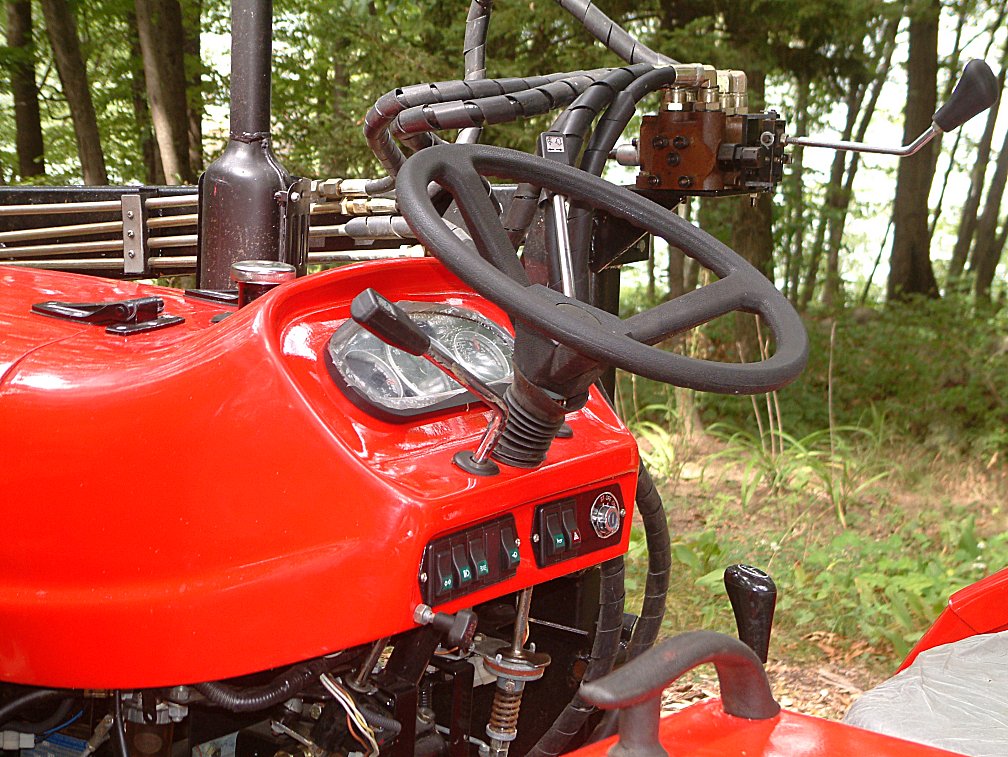

Jinma 254 Tractor with Optional Front Loader

CLICK EACH PICTURE TO ENLARGE

(pictures are of a 284, but it looks the same as a 254)

jm284loader1.jpg (283510 bytes) jm284loader2.jpg (187097 bytes) jm284loader3.jpg (323493 bytes) jm284loader4.jpg (310922 bytes)

**********************************************

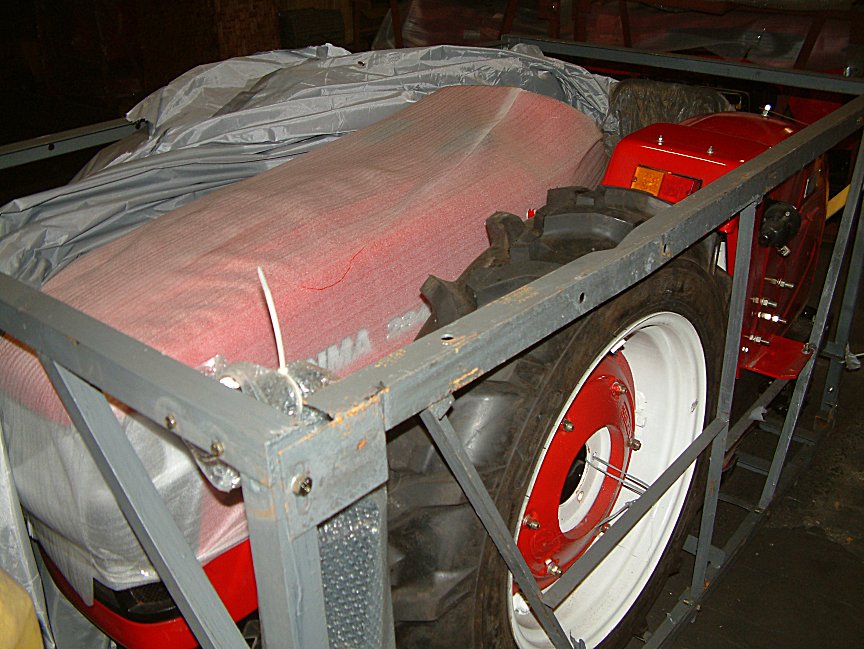

25HP, 4WD, Ag tires; unassembled in crate

OUT OF STOCK

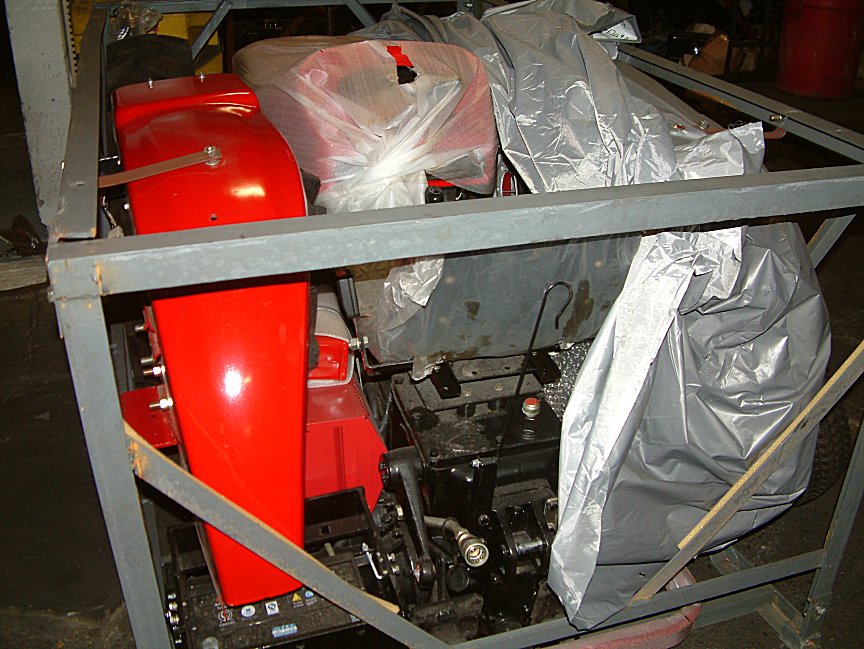

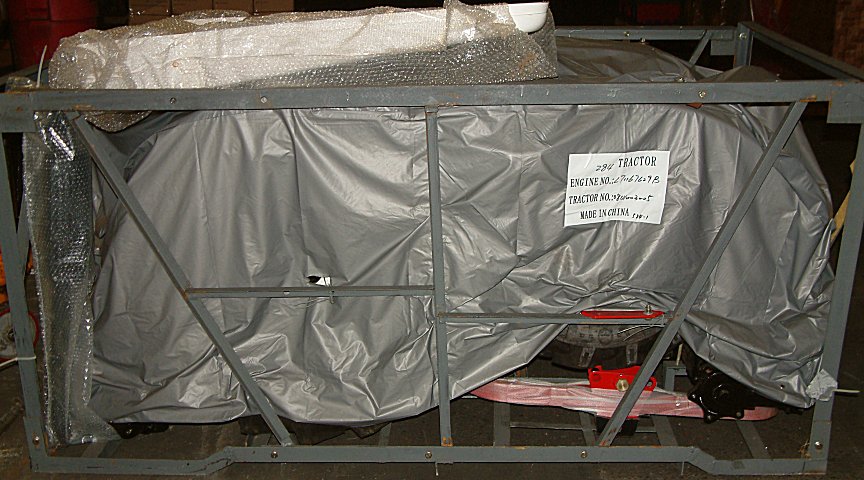

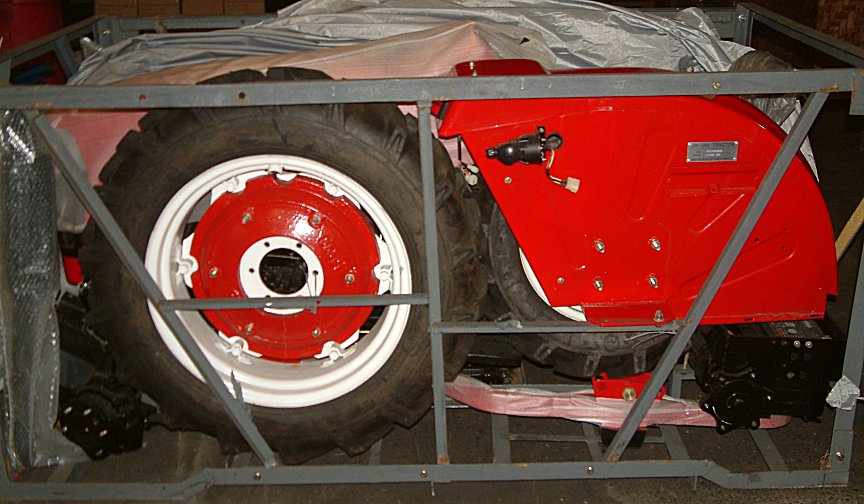

284-1.jpg (111799 bytes) 284-2.jpg (101317 bytes) 284-3.jpg (140439 bytes) 284-4.jpg (132318 bytes)


FRONT LOADERS: JM-ZL-20 (for 20-28HP tractors); unassembled in crate OUT OF STOCK
FRONT LOADERS: JM-ZL-30 (for 35HP tractors); unassembled in crate
only $1,495+ shipping

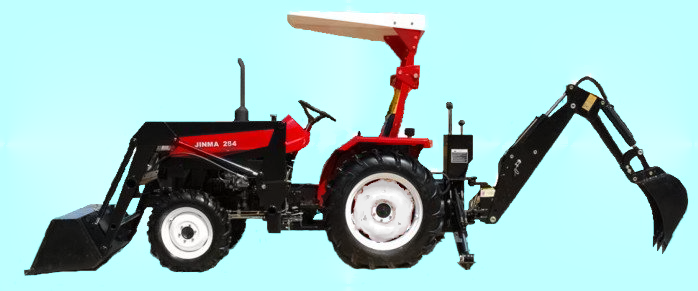

BACKHOES 7ft; 3-PT. HITCH; unassembled in crate
only $2,495 + shipping

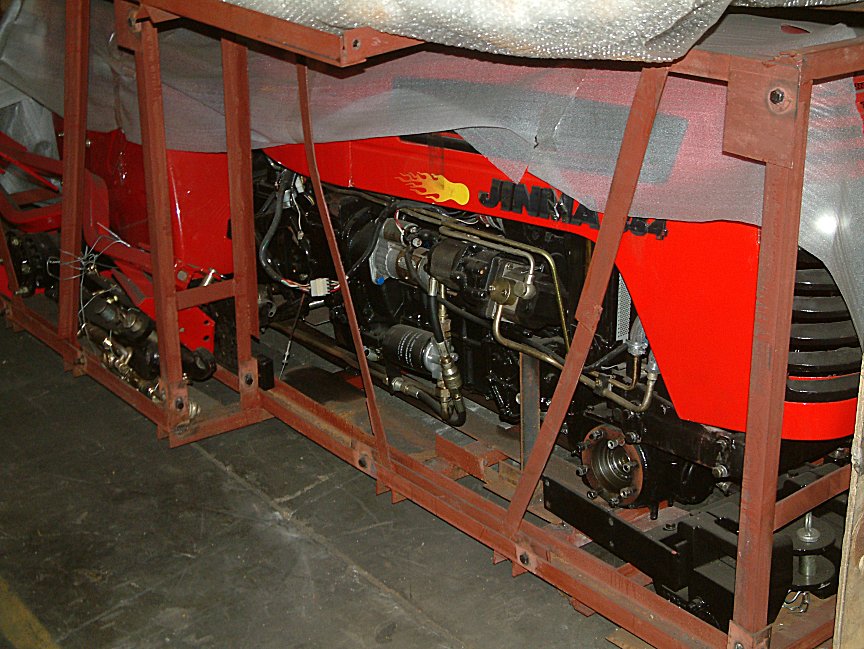

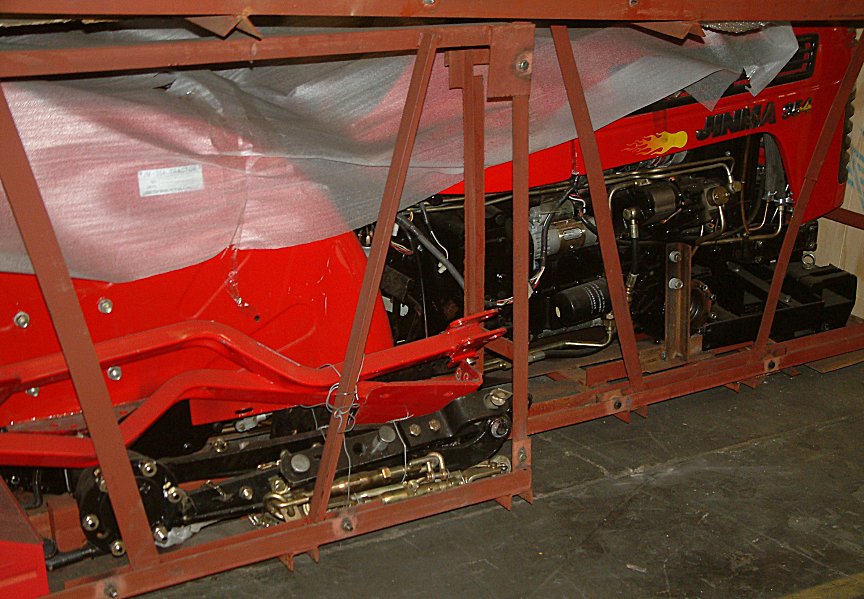

35HP, 4WD, Ag tires; unassembled in crate OUT OF STOCK

These Specs shown in U.S. Measurements
Inches, Pounds, Miles Per Hour, Revolutions Per Minute, Pound/Force
Model 204 284 354
Drive 4 WD 4 WD 4 WD
Overall Dimensions
L x W x H
104.9 x 48.6 x 51.1 117.7 x 50.7 x 56.6 123.8 x 57 x 80.7
Wheel Base
Front to Rear
59.4 / 61.4 63.9 / 64.6 72.1
Wheel Width Front 37.4 41.3 47.2
Wheel Width Rear
Adjustable
37.4/43.3 42/49.2 39.3/55
Ground Clearance 10.8 11.6 11.4
Tire Size Front 6 x 12 6 x 16 6 x 16
Tire Size Rear 8.3 x 24 9.5 x 24 11.2 x 24
Tractor Weight
Unloaded
2646 3009 3395
Forward Speeds .40 - 15 .40 - 15 1.1 -14.8
Reverse Speeds .54 - 6.4 .54 - 6.4 1.4 - 6.77
PTO Speeds 540/1000 540/1000 540/720
3 Point Hitch Cat. 1 Cat. 1 Cat. 1
Hitch Lift Capacity 742 876 1113
Engine RPM 2200 2400 2400
Engine Type 3 Cylinder. Vertical
Water Cooled
4 Stroke Diesel
3 Cylinder. Vertical
Water Cooled
4 Stroke Diesel
4 Cylinder. Vertical
Water Cooled
4 Stroke Diesel
Clutch Dual Stage Dual Stage Dual Stage
Manual Gearbox HI/LO  3 Gear
6 Forward Speeds
3 Gear
6 Forward Speeds
4 Gear
Hi/Lo
8 Forward Speeds
Power Steering
Standard
Yes Yes Yes
Brakes Dry Shoe Disk Disk
TRACTORS INCLUDE DUAL-STAGE CLUTCH, HYDRAULIC POWERING, ROPS, CANOPY, 540/1000 PTO, AND COMPLETE GAUGES

PLEASE NOTE: ONLY EPA APPROVED TRACTORS CAN BE SOLD IN THE USA. NO OTHER TRACTORS ARE ALLOWED.


Attention buyers of crated tractors: It is very important that when you receive a crated Chinese-made tractor that you drain it of all fluids and replace the fluids with American made products.
NOTE: If these tractors are shipped with a dry-packed battery (NO electrolyte), it must be filled. Once filled with electrolyte, the battery must also be charged. Picture shows 20-28HP tractors with turf tires, but tractors comes with Ag tires.
Please Click on each picture to enlarge
20/22/25/28HP (4WD)
Jinma 18-28HP 4WD tractors (85062 bytes)
SPECIFICATIONS

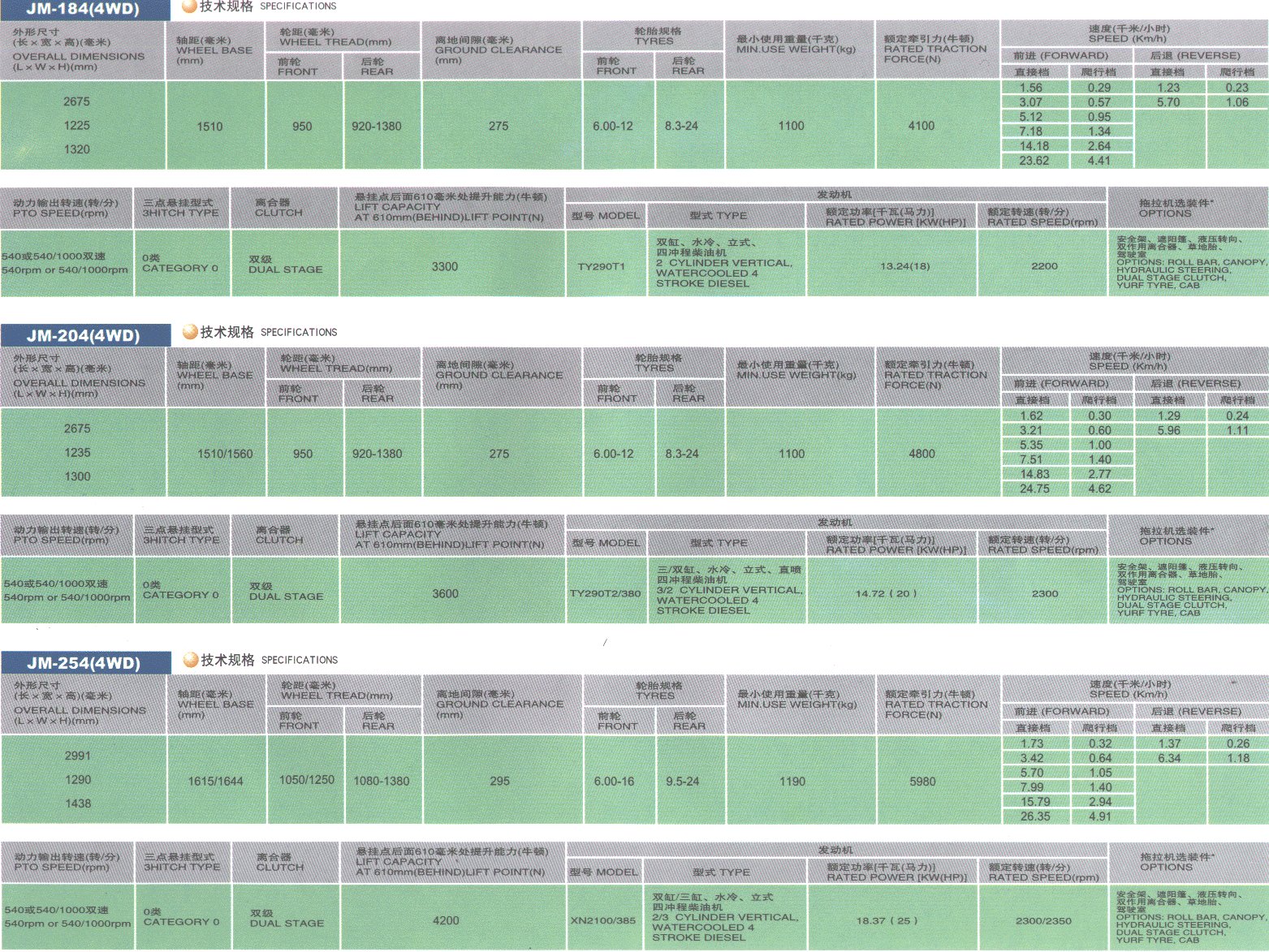

Specifications for Jinma 18-28HP 4WD tractors (523717 bytes)
EPA Approved!
Includes Dual Stage Clutch, Power Steering, ROPS, Canopy, and PTO.
12 Speed with Creeper Gear.
(Shuttle Shift is optional).
30/35HP (2WD)

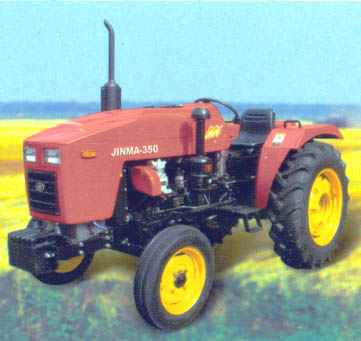

Jinma 30HP, 2WD tractors

SPECIFICATIONS

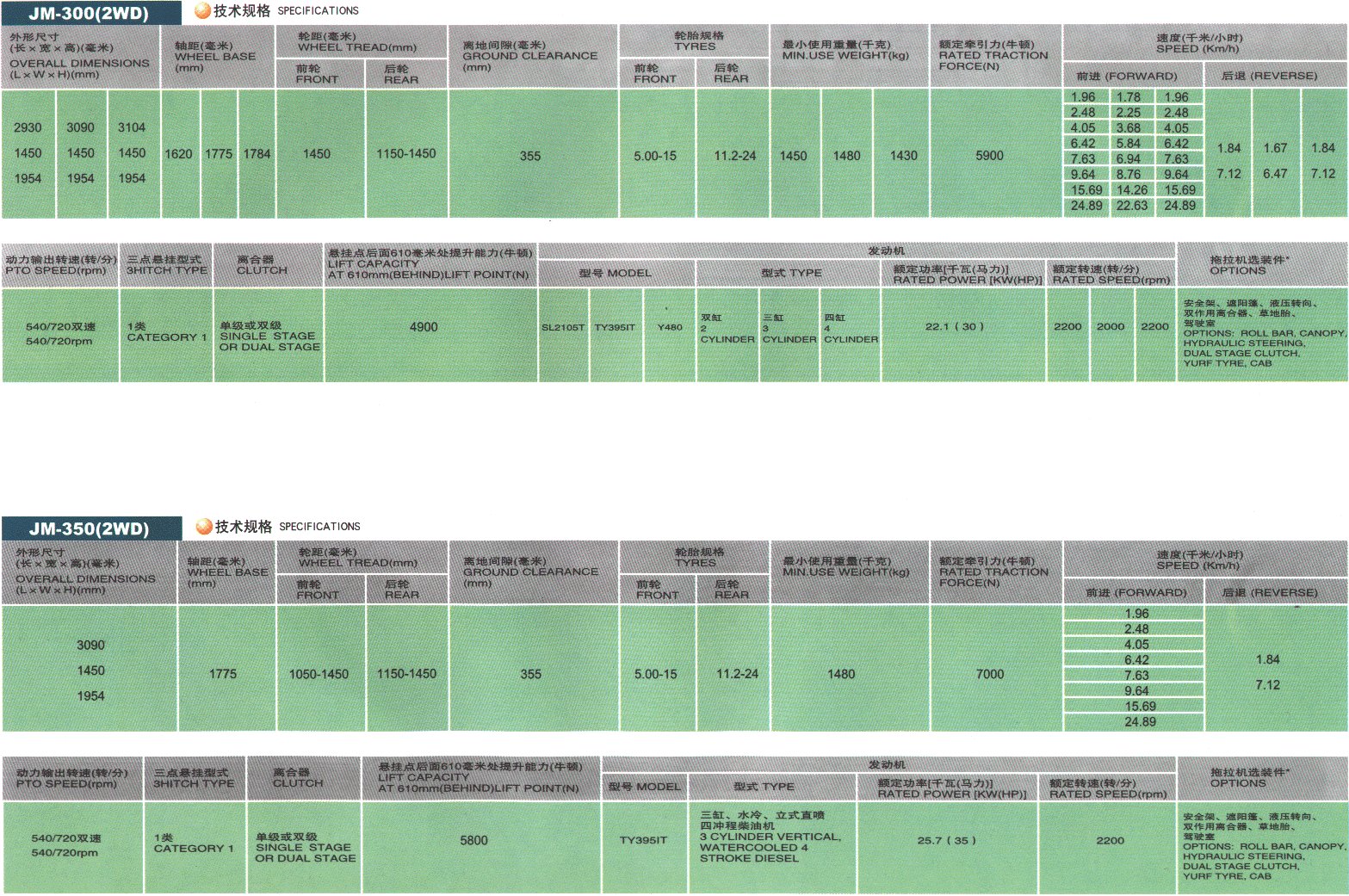

Specifications for Jinma 30-35HP 2WD tractors  (445553 bytes)
EPA Approved!
Includes Dual Stage Clutch, Power Steering, ROPS, Canopy.

30/35HP (4WD)

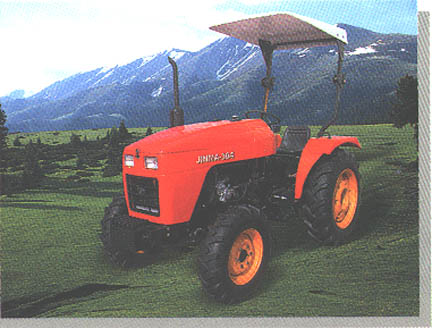

Jinma 30-35HP 4WD tractors (71497 bytes)
SPECIFICATIONS

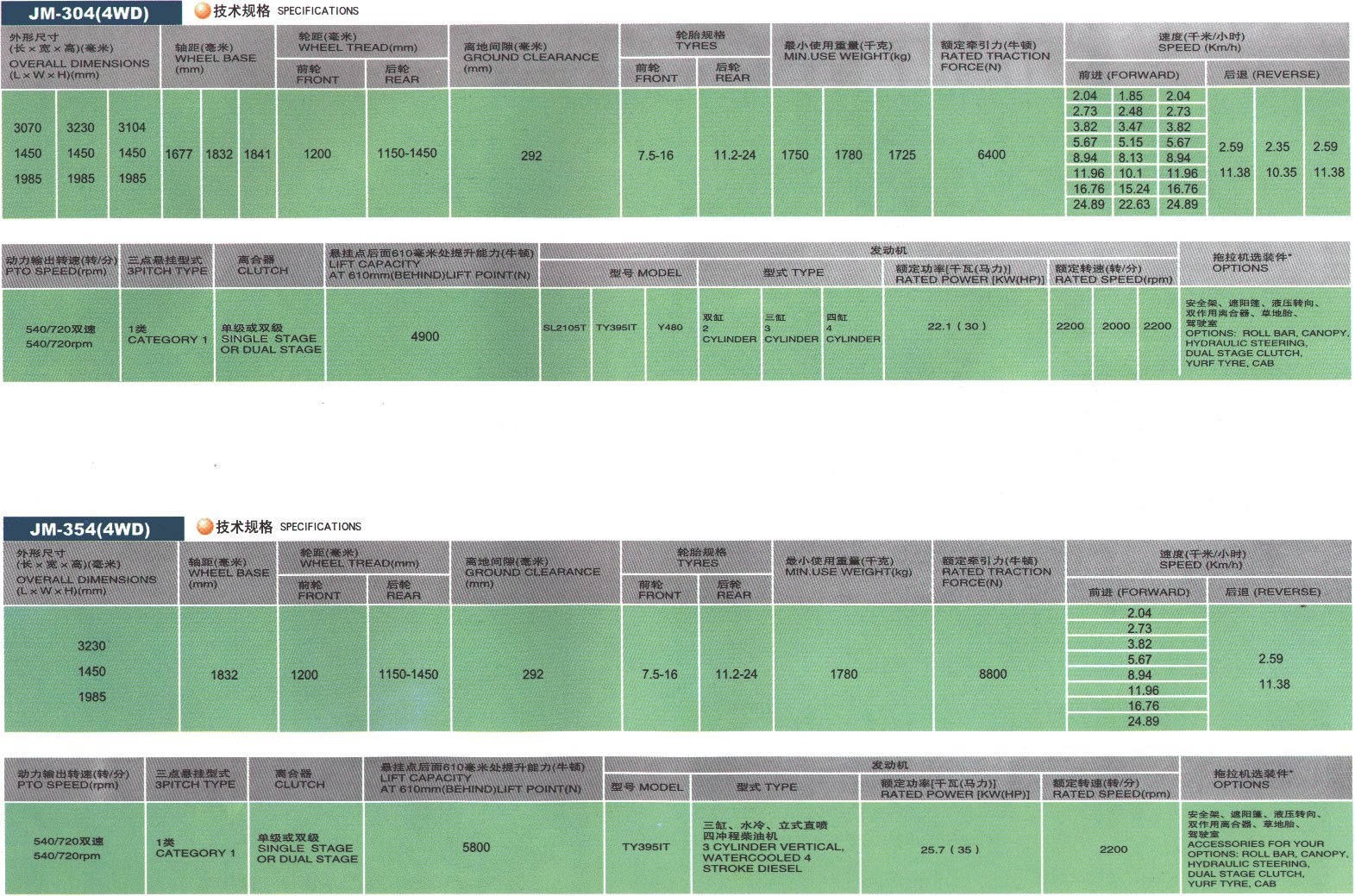

Specifications for Jinma 30-25HP 4WD tractors  (441199 bytes)
EPA Approved!
Includes Dual Stage Clutch, Power Steering, ROPS, Canopy.

40/45/50HP (2WD)

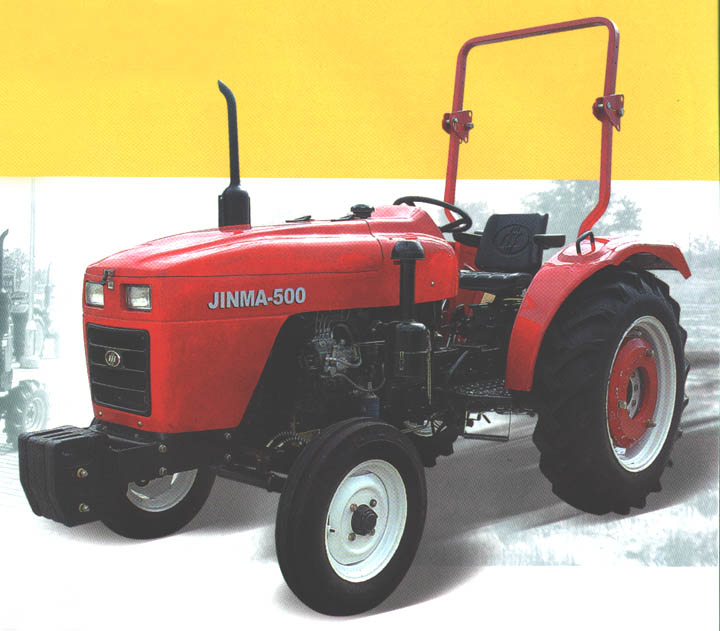

Jinma 40-50HP 2WD tractors (107001 bytes)
SPECIFICATIONS

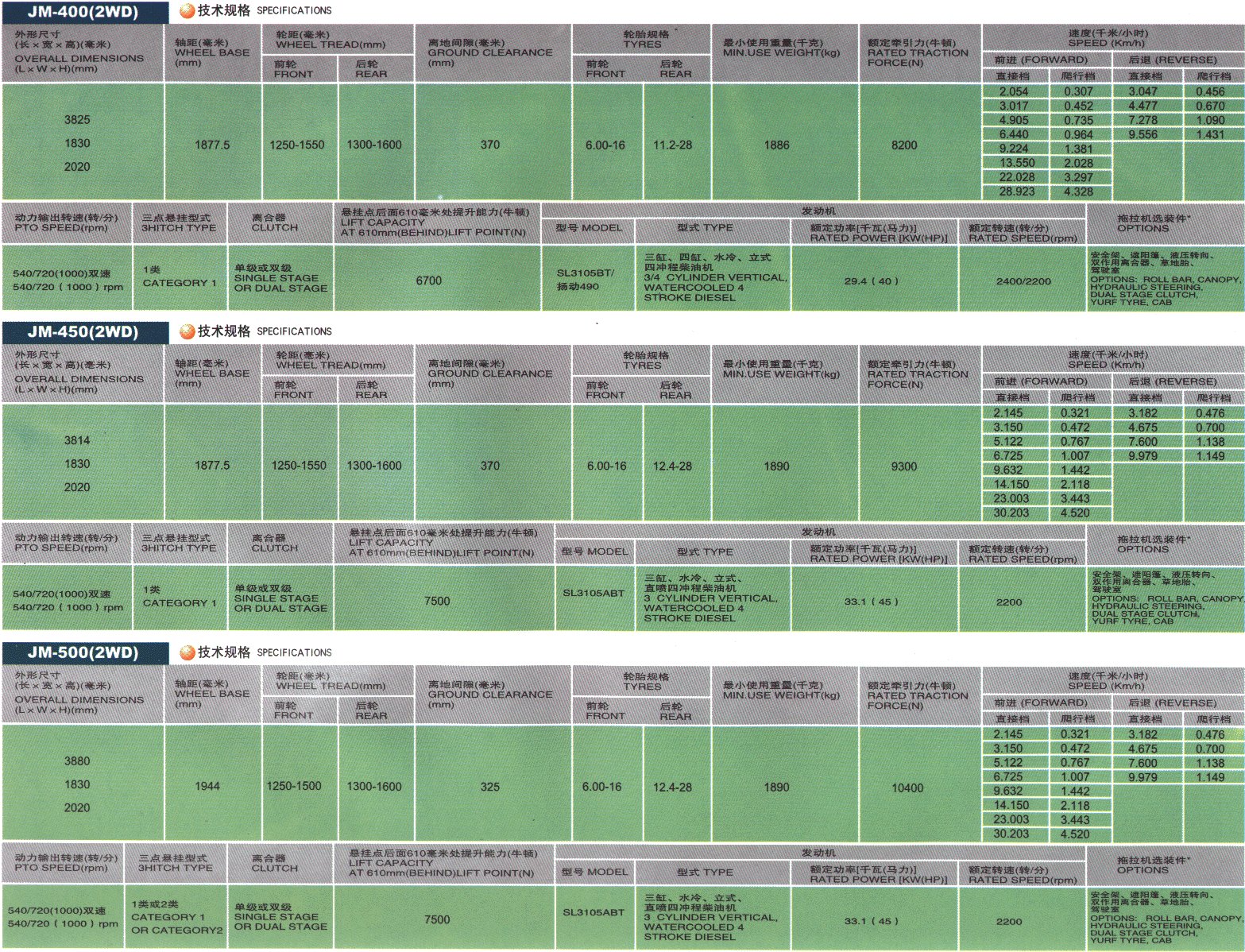

Specifications for Jinma 40-50HP 2WD tractors (634951 bytes)
THESE TRACTORS ARE NOT EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA
40/45/50HP (4WD)

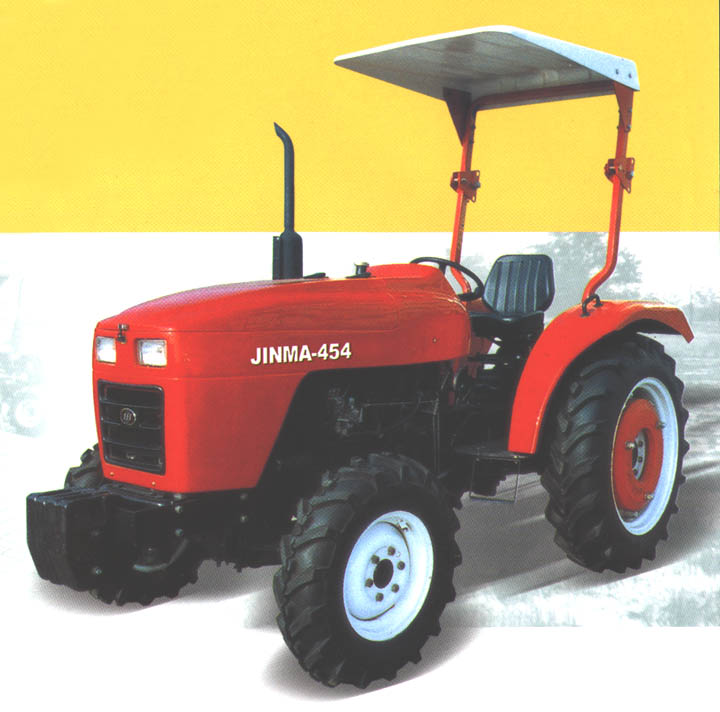

Jinma 40-50HP 4WD tractors (109343 bytes)
SPECIFICATIONS

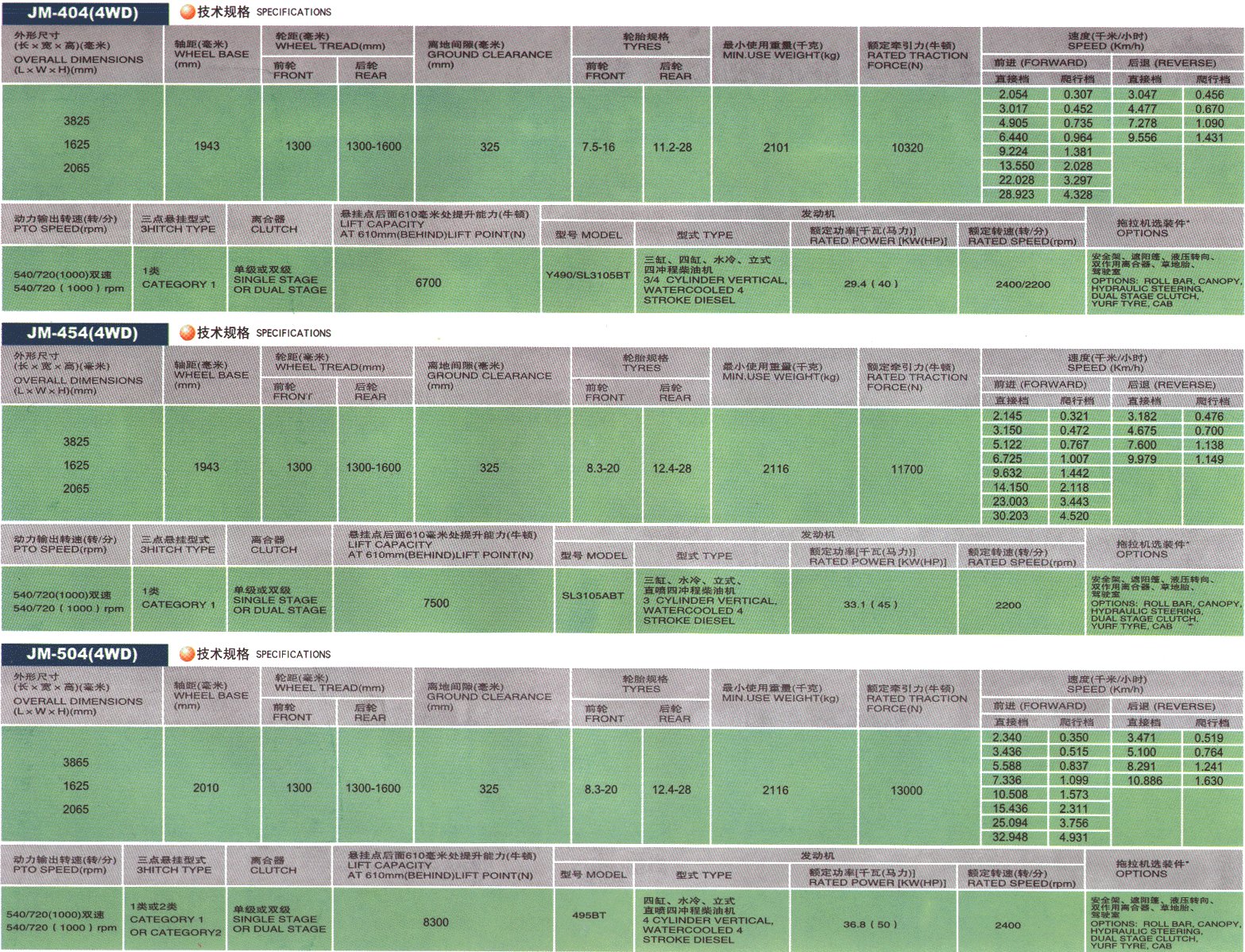

Specifications for Jinma 40-50HP 4WD tractors  (605183 bytes)
THESE TRACTORS ARE NOT EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA
55/60/65HP (2WD)

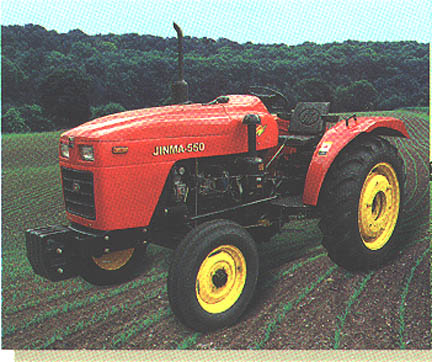

Jinma 55-65HP 2WD tractors (91934 bytes)
SPECIFICATIONS

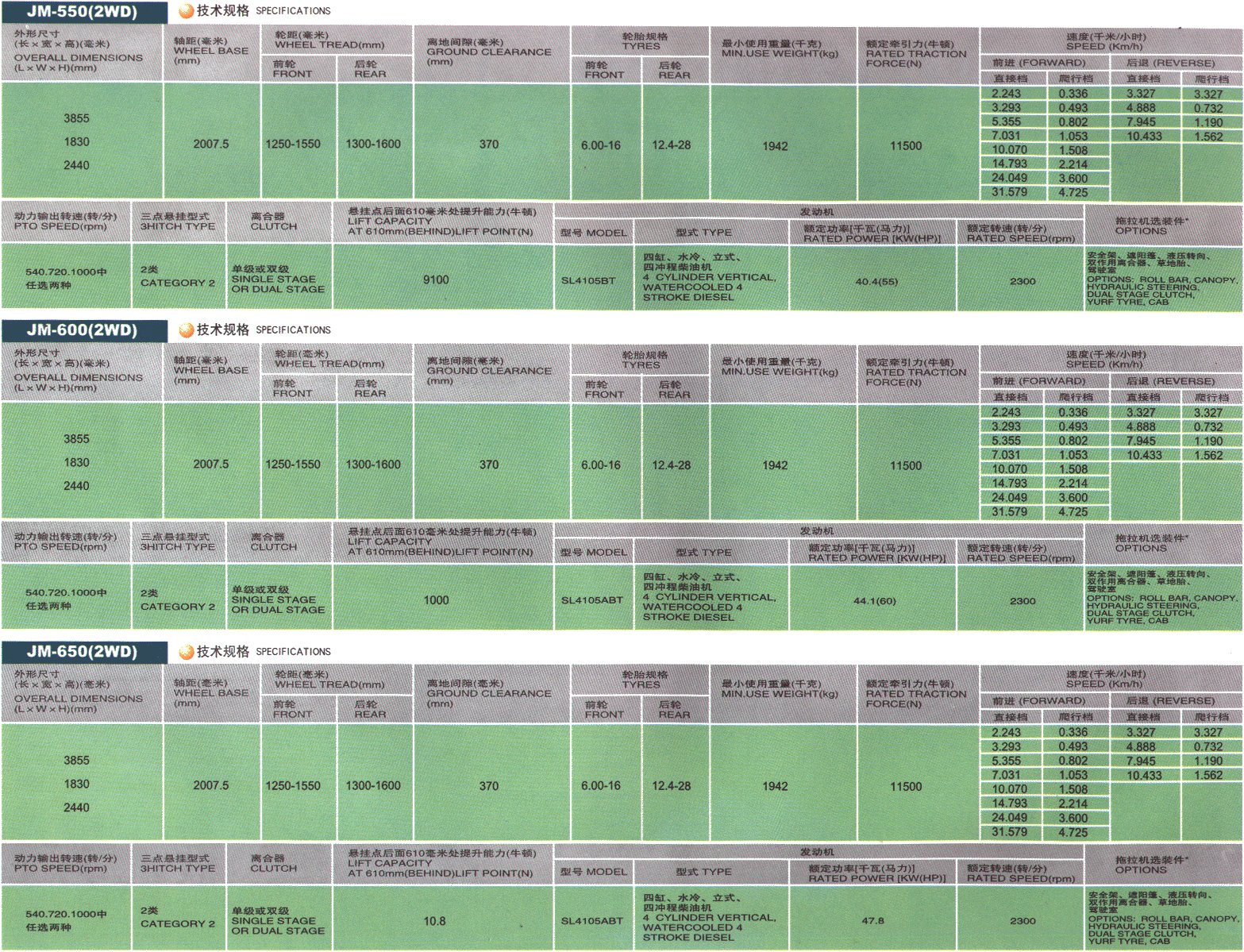

Specifications for Jinma 55-65HP 2WD tractors  (605054 bytes)
THESE TRACTORS ARE NOT EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

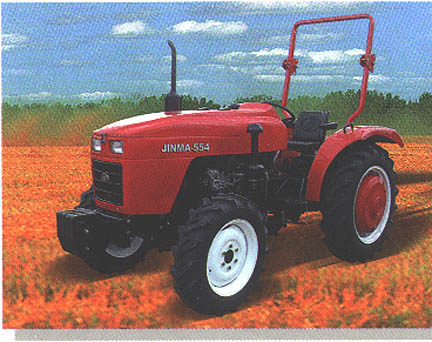

55/60/65HP (4WD)
Jinma 55-65HP 4WD tractors (84567 bytes)
SPECIFICATIONS

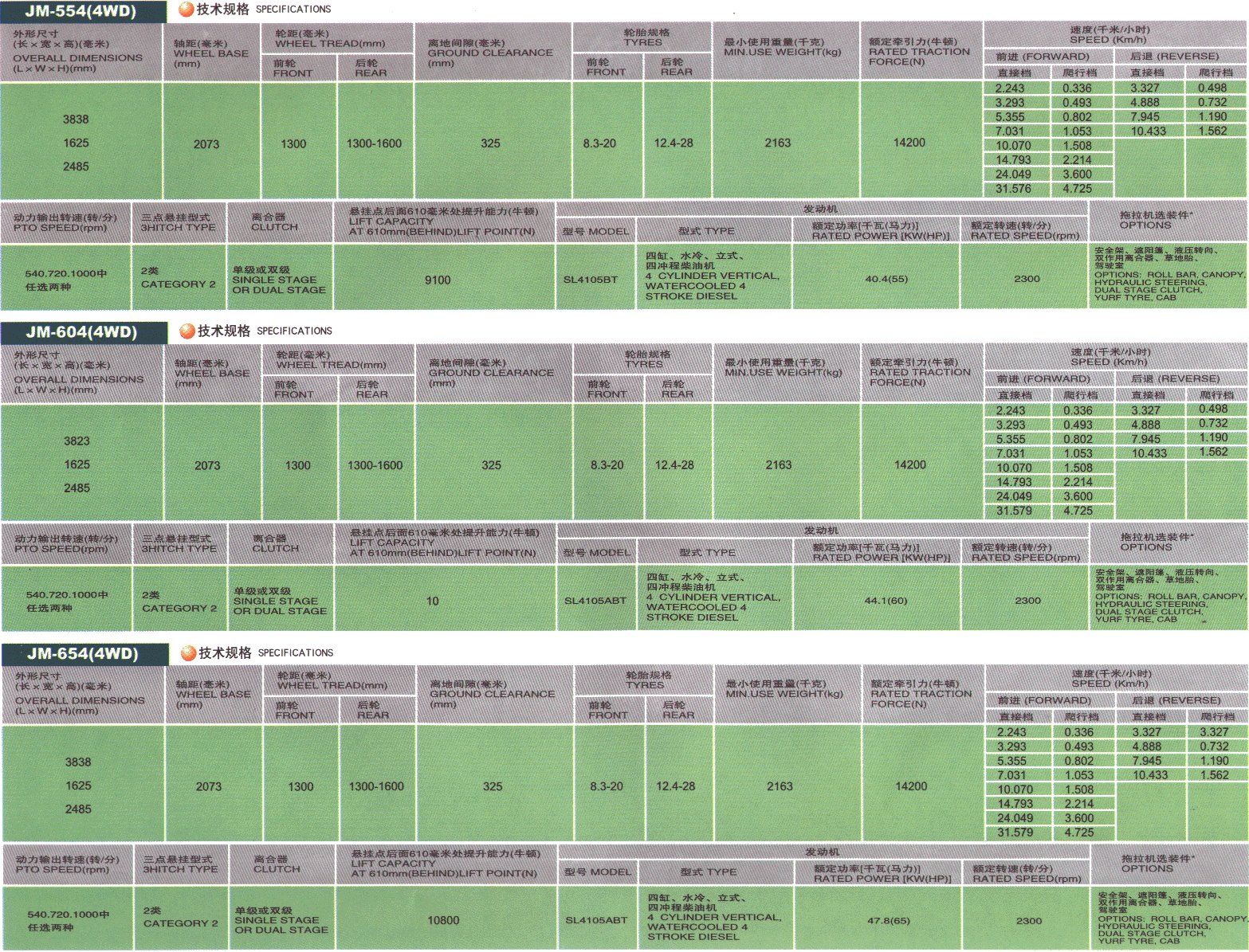

Specifications for Jinma 55-65HP 4WD tractors  (612696 bytes)

THESE TRACTORS ARE NOT EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA

70/72/75HP (2WD)

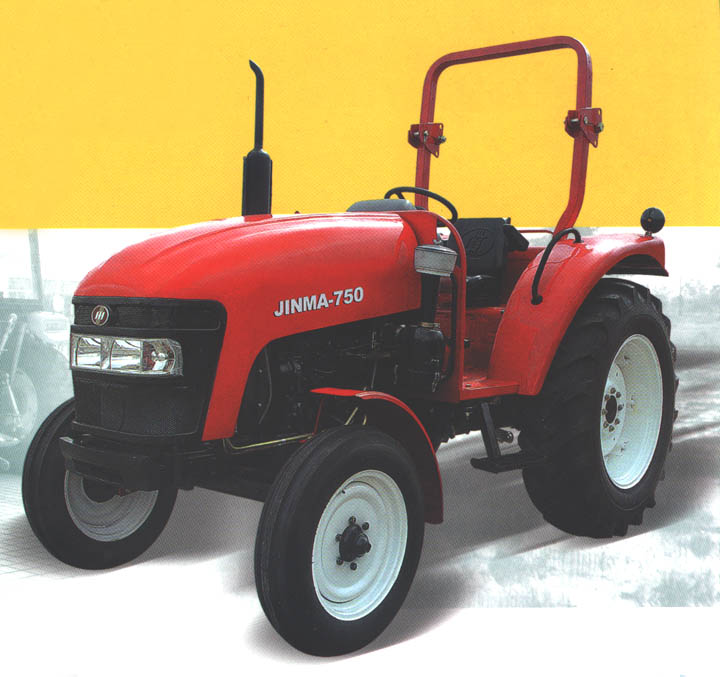

Jinma 70-75HP 2WD tractors(110515 bytes)
SPECIFICATIONS

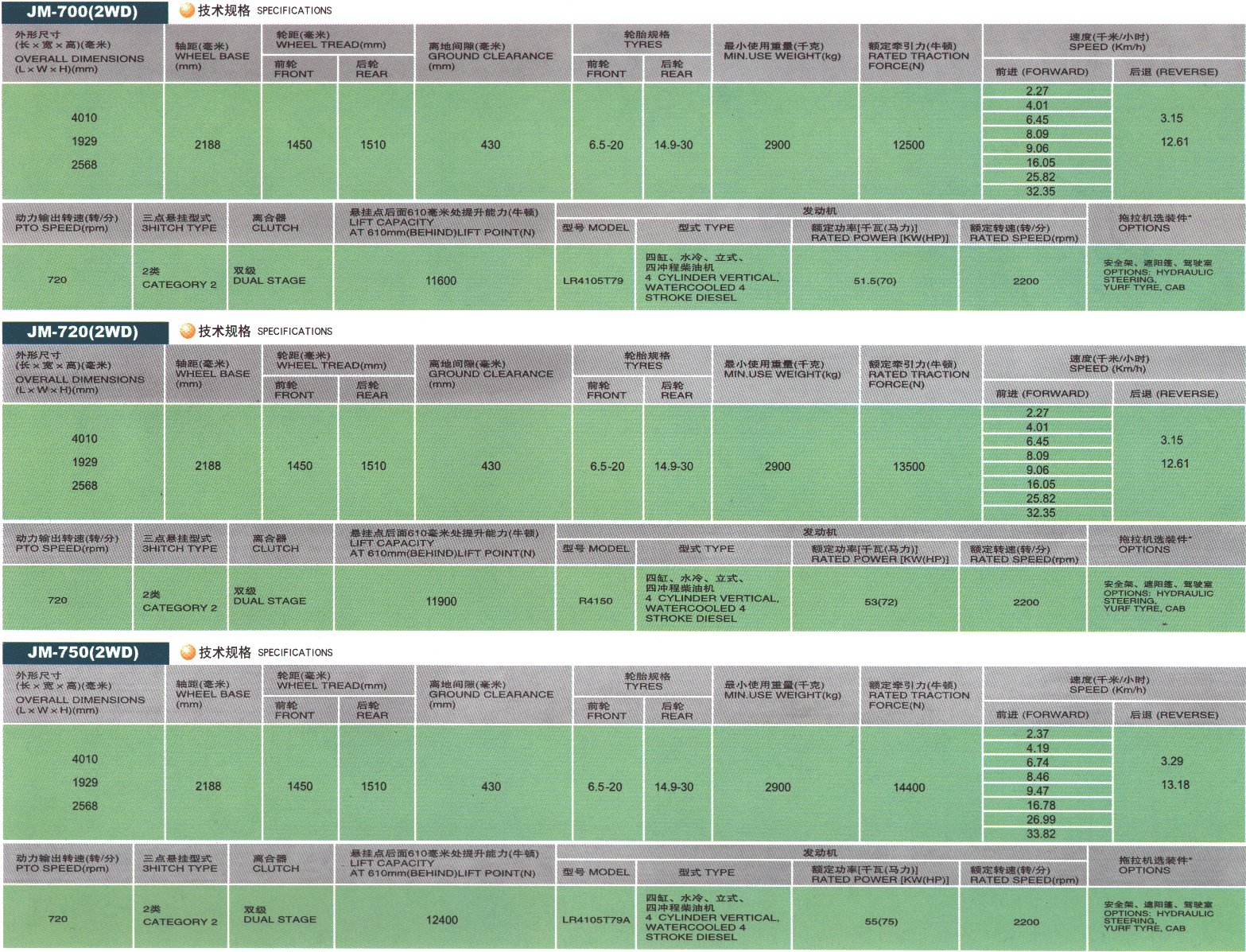

Specifications for Jinma 70-75HP 2WD tractors  (606104 bytes)
THESE TRACTORS ARE NOT EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA
70/72/75HP (4WD)

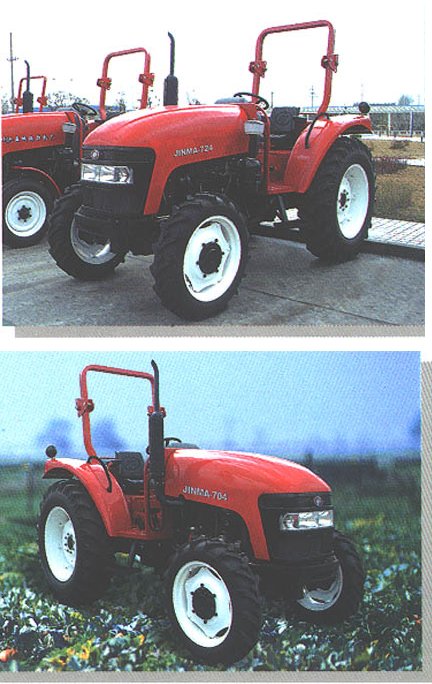

Jinma 70-75HP 4WD tractors (76731 bytes)

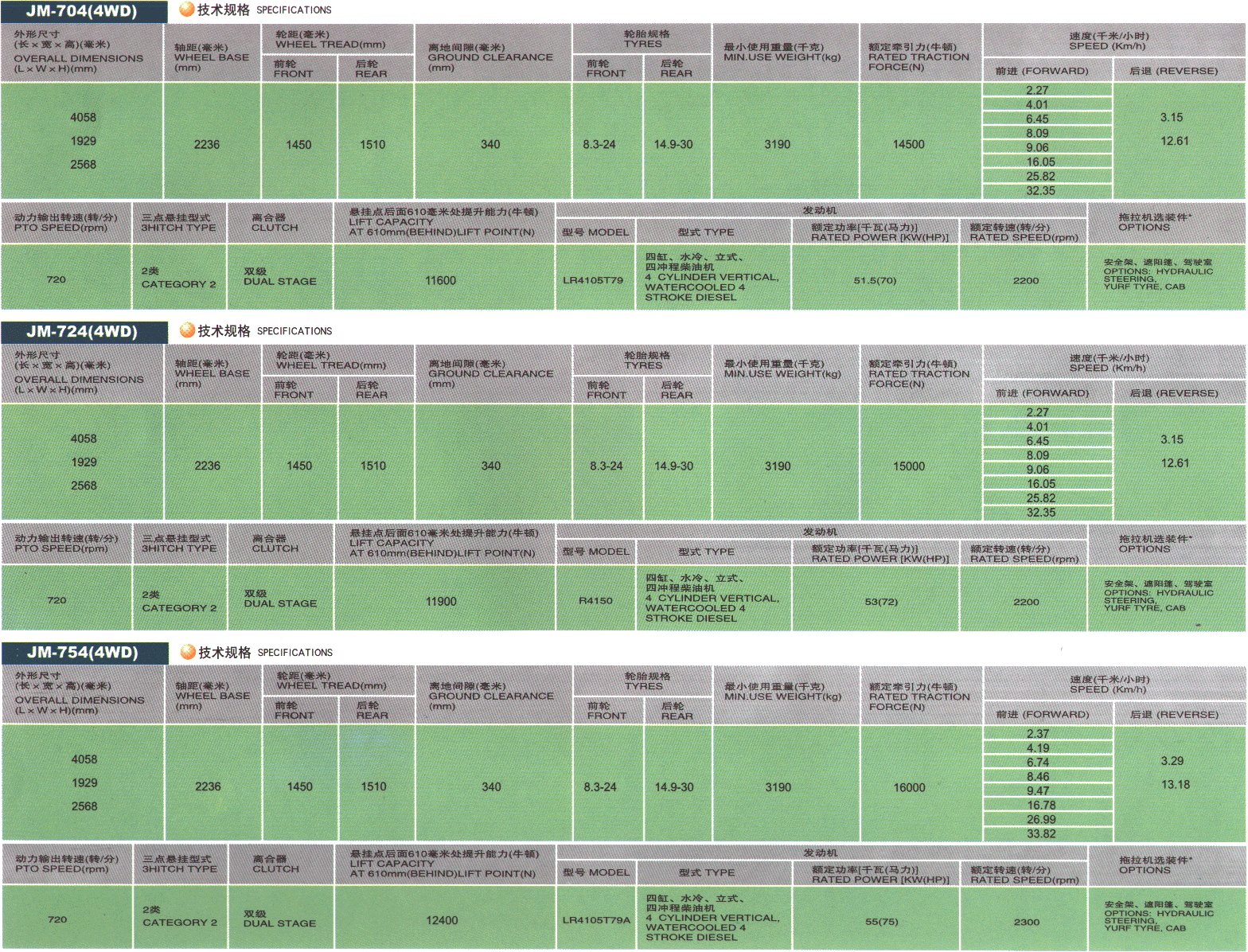

SPECIFICATIONS
Specifications for Jinma 70-75HP 4WD tractors  (608217 bytes)
THESE TRACTORS ARE NOT EPA APPROVED AND THEREFORE CANNOT BE SOLD IN THE USA
JINMA TRACTOR IMPLEMENTS
FRONT LOADERS: JM-ZL-20 (for 20-28HP tractors); unassembled in crate OUT OF STOCK
FRONT LOADERS: JM-ZL-30 (for 35HP tractors); unassembled in crate
only $1,495 +shipping
BACKHOES 7Ft; 3-PT. HITCH; unassembled in crate
only $2,495 + shipping
WOOD CHIPPERS; NOW 8" only $1,695.
+ shipping. Minor assembly required

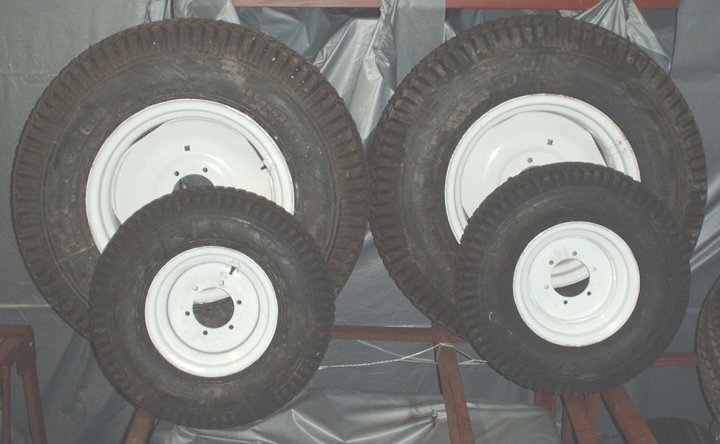

SET OF TURF TIRES w/ rims $949 + shipping

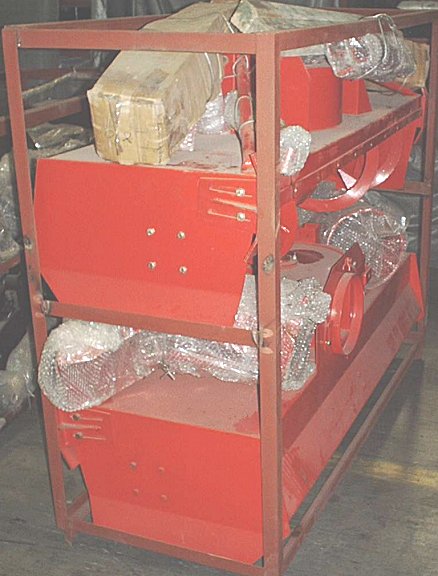

SNOW BLOWERS OUT OF STOCK. Minor assembly required

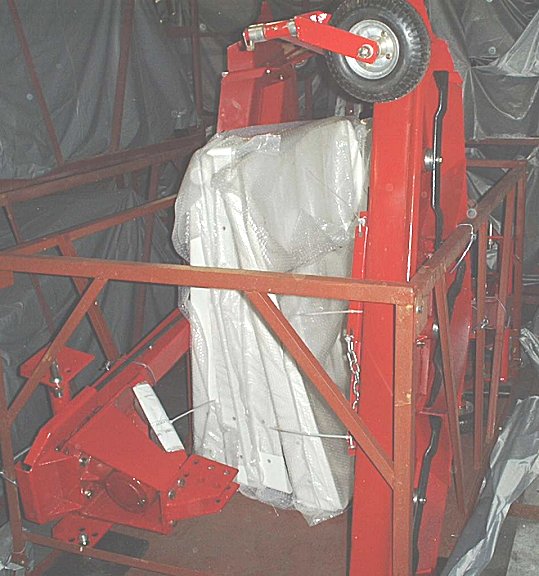

BELLY MOWERS  OUT OF STOCK. Minor assembly required

Click Each to Enlarge

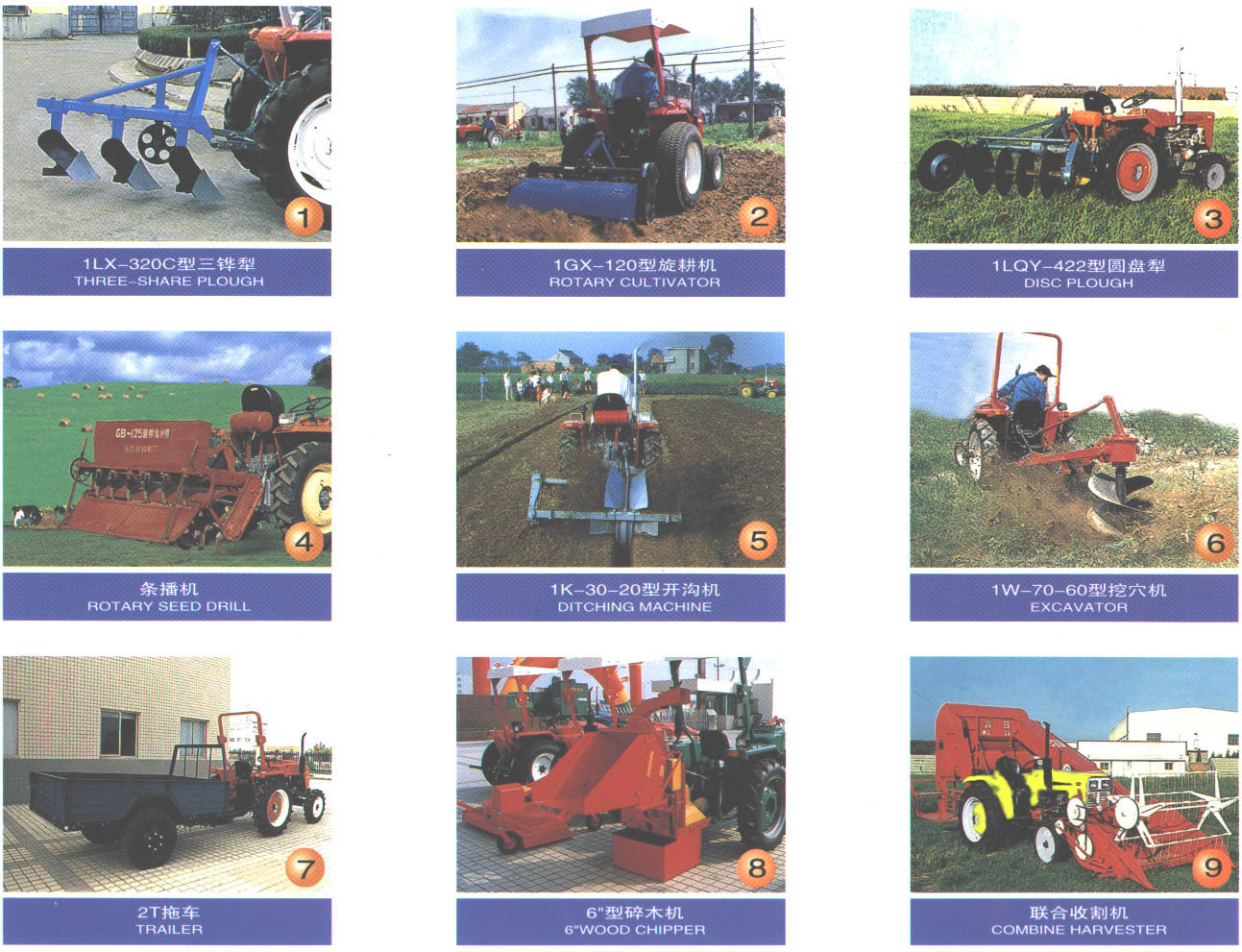

Jinma tracter implements (306519 bytes) SPECIFICATIONS
Specifications for Jinma tractor implements (455137 bytes)
Three-Share-Plough Rotary Cultivator Disc Plough
Rotary Seed Drill Ditching Machine Excavator
Trailer 6" Wood Chipper Combine Harvester

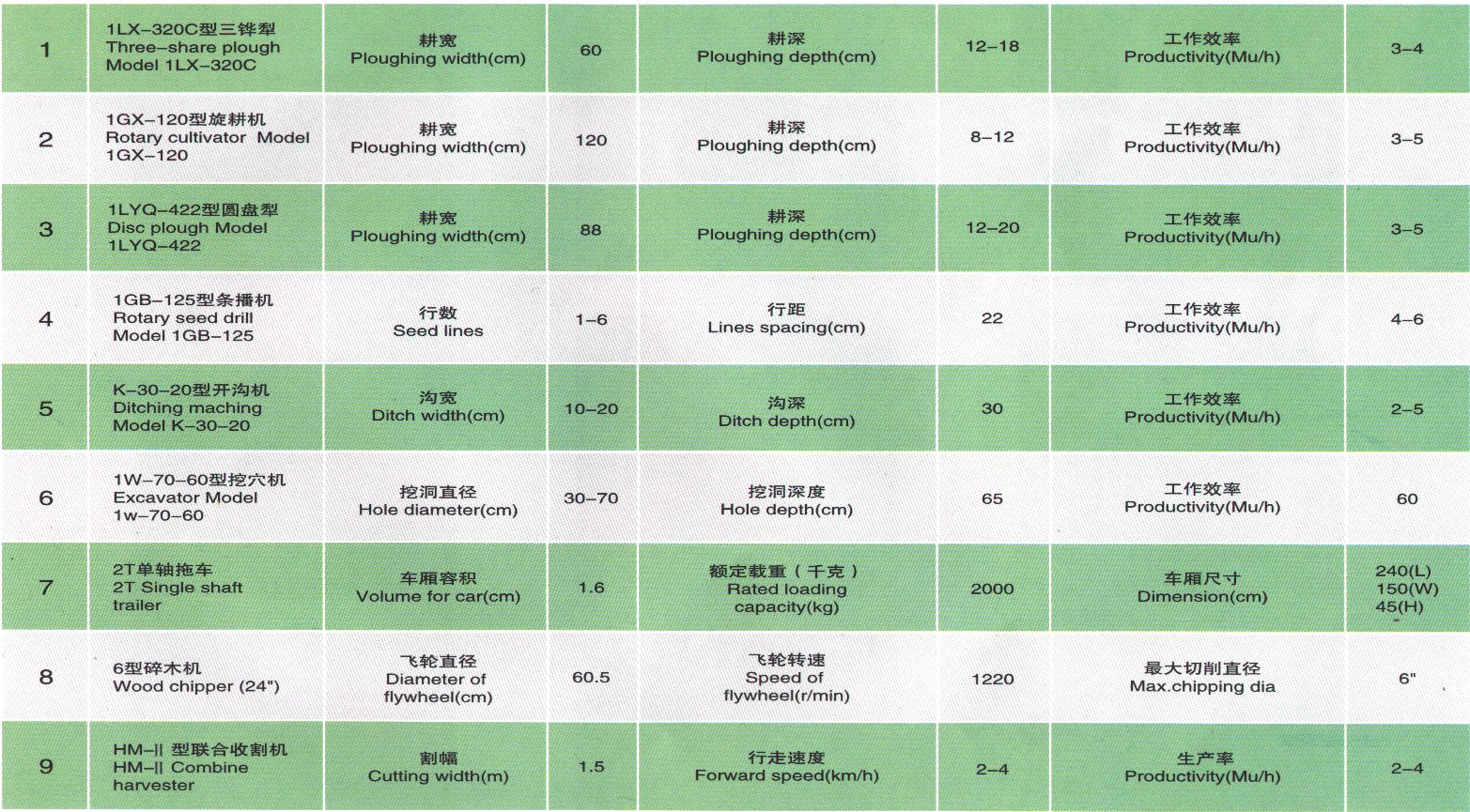

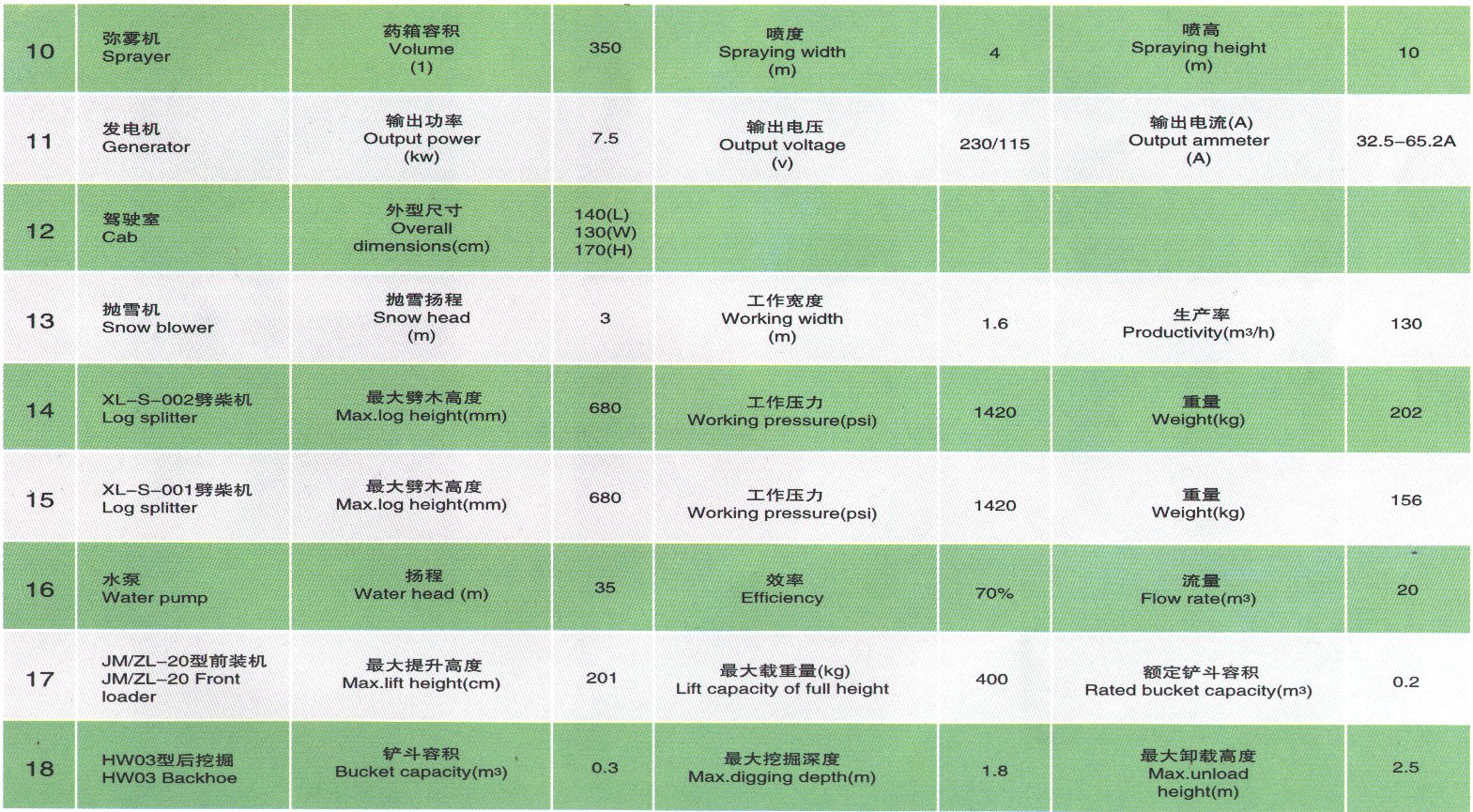

Jinma tractor implements (303676 bytes) SPECIFICATIONS
Specifications for Jinma tractor implements (437289 bytes)

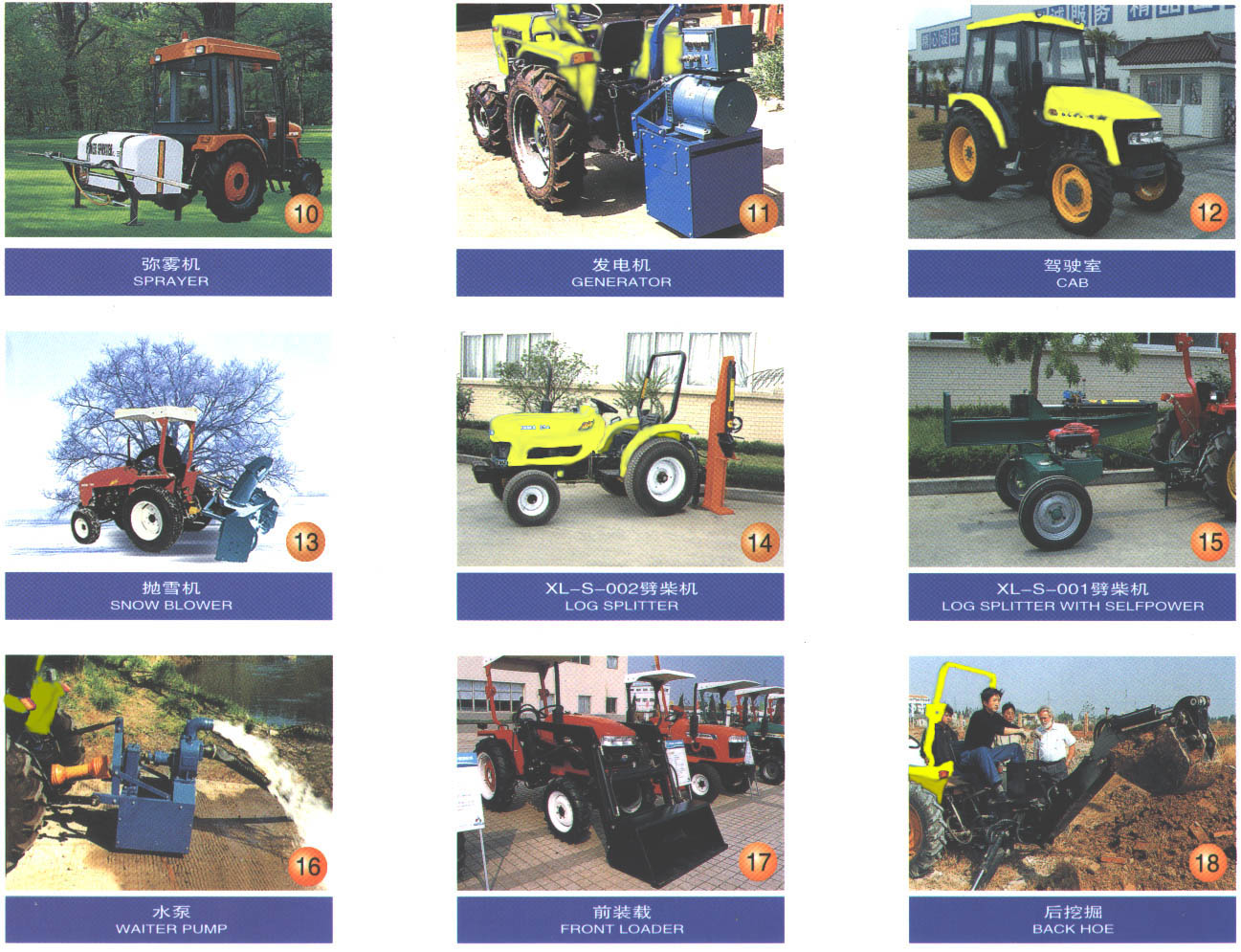

Sprayer Generator Cab
Snow Blower Log Splitter Powered Log Splitter
Water Pump Front Loader Back Hoe
