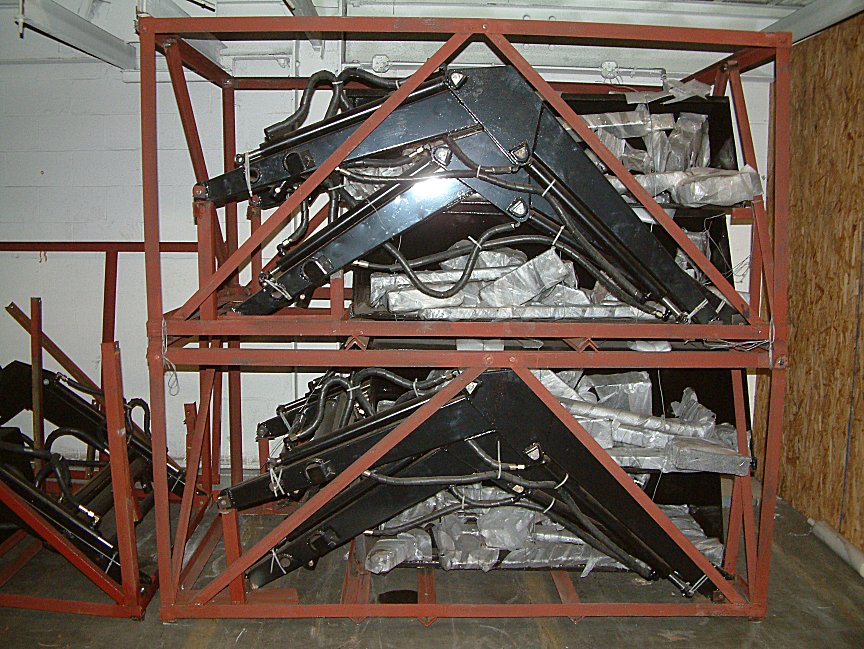

FRONT LOADERS
IN
STOCK IN THE USA NOW!! SPECIFICATIONS
Maximum lift height: 79in.
Lift capacity of full height: 882lbs.
Rated bucket capacity: 7.06 cu.ft.

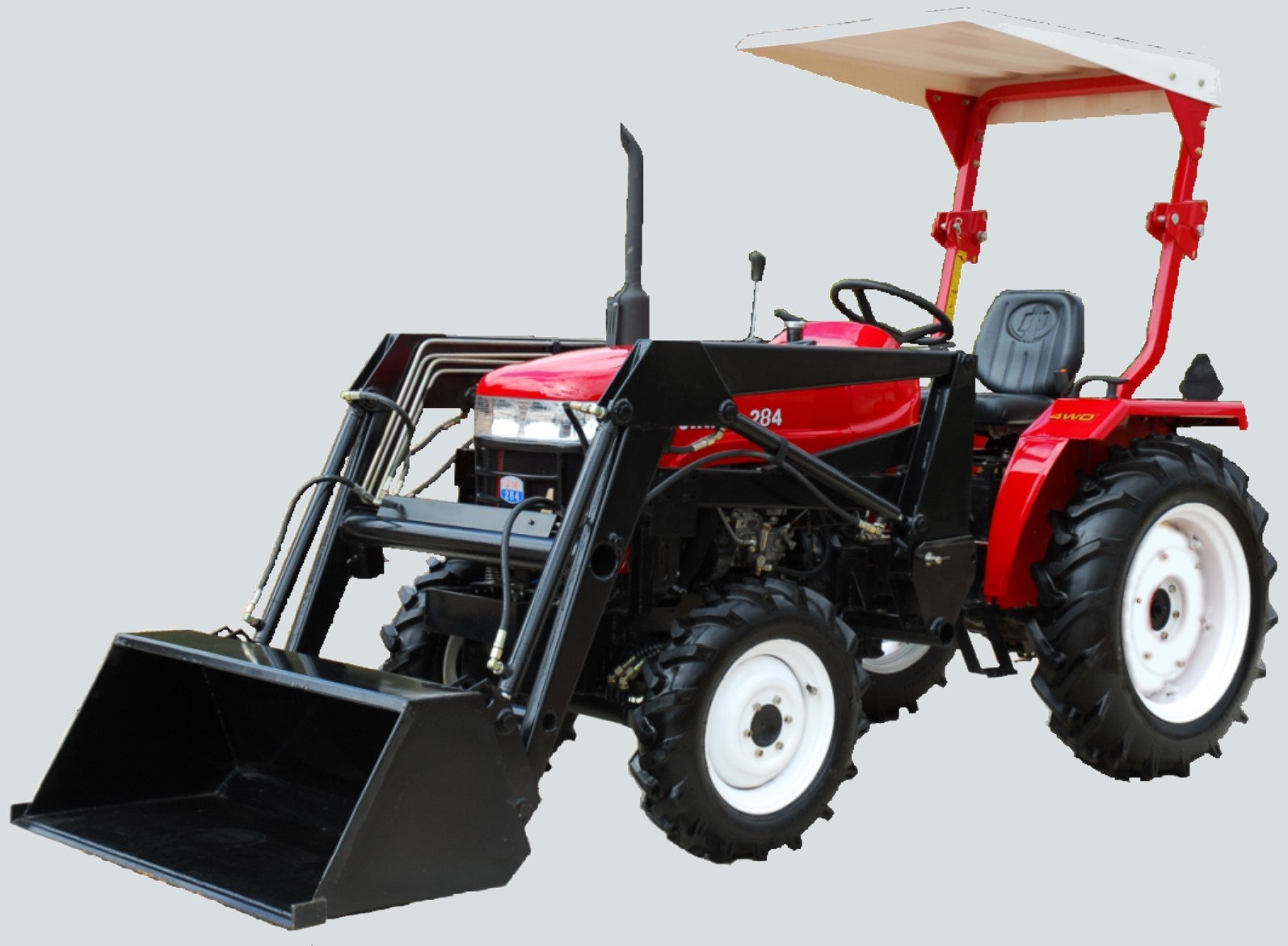

JM-ZL-20 (for 20 and 28HP tractors): only $2,295 (4 FT. BUCKET)
OR $2,395 (5 FT. BUCKET)+
shipping NOTE: 5ft. bucket is back ordered to July 2010
JM-ZL-30 (for 35HP tractors): only
$2,550 (5 FT. BUCKET)+
shipping
NOTE:
You can save all shipping charges by coming to our warehouse and
pick it up yourself. Call 401-725-8141
for details.
CLICK
PICTURES TO ENLARGE
BACKHOES
IN
STOCK IN THE USA NOW!! LW Series Models 02 and 03

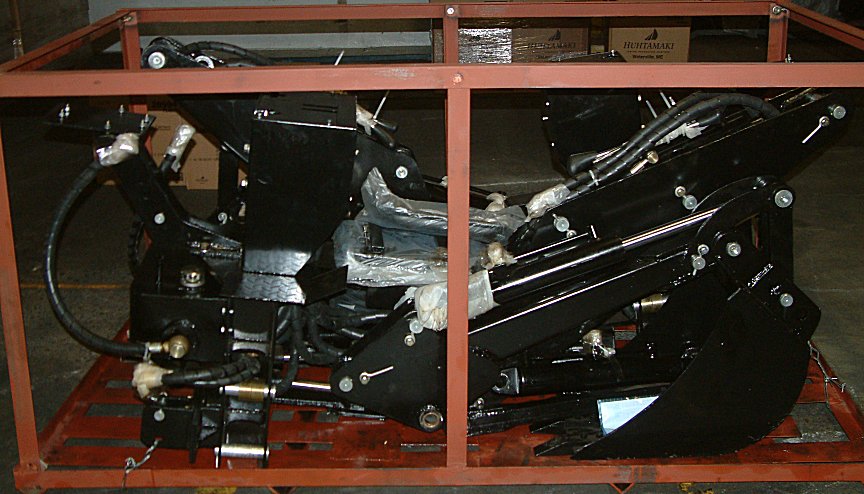

Quick Attach type 3 point hitch backhoes.
These backhoes can match 18HP to 45HP wheeled or crawler tractors
LW-02 with 6ft. dig depth
(18HP to 30HP) only
$3,195+
shipping
LW-03 with 7ft. dig depth (30HP to 45HP)only
$3,295+
shipping
NOTE: You can
save all shipping charges by coming to our warehouse and pick it up
yourself. Call 401-725-8141 for
details.

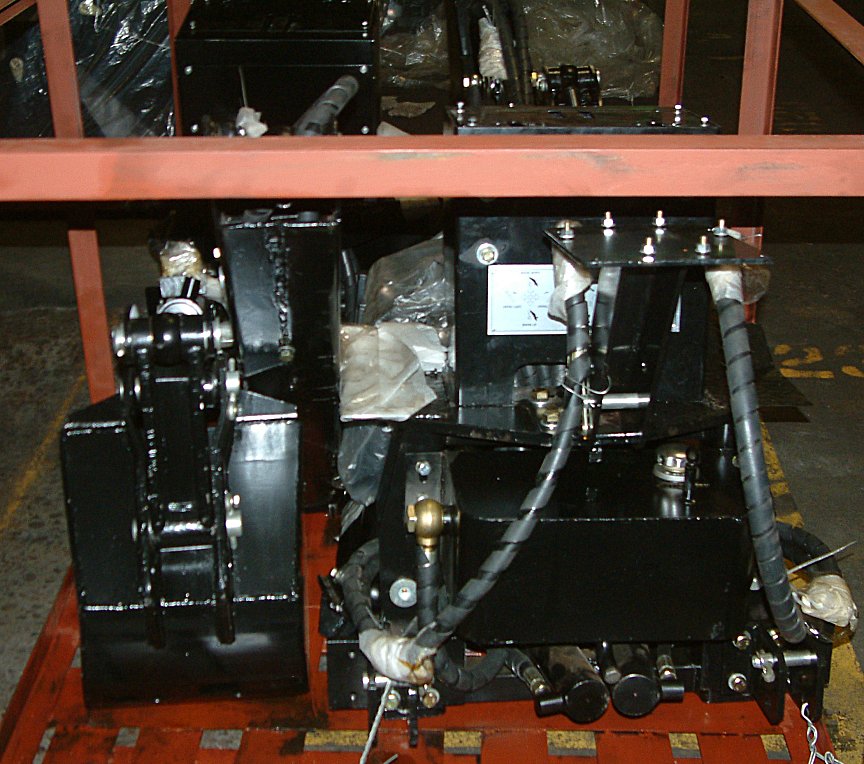

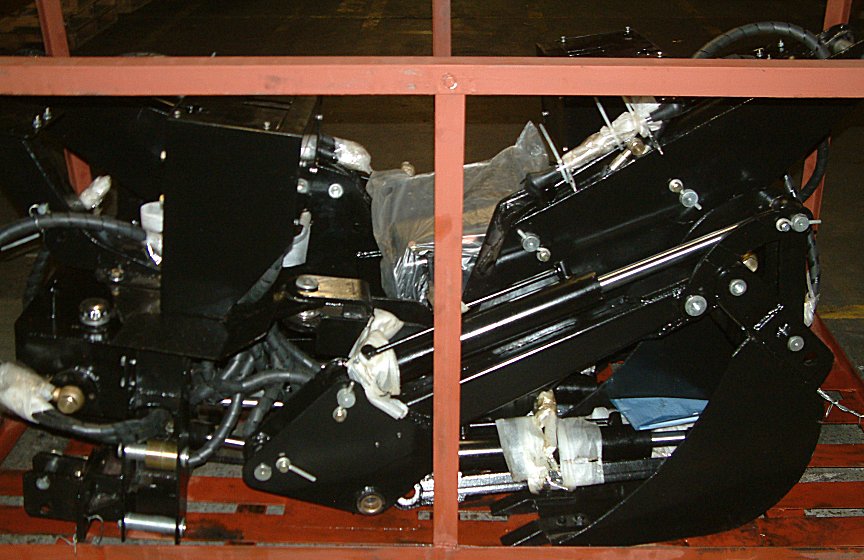

3 Point Hitch type backhoe
CLICK PICTURES TO ENLARGE
Click Each to Enlarge
Backhoe Diagram
Backhoe Technical Parameters
Backhoe Hydraulic Oil System
A
To
Stick Cylinder
B
To
Bucket Cylinder
C
To
Right Stabilizer Cylinder
D
To
Left Stabilizer Cylinder
E
To
Return Cylinder
F
To
Boom Cylinder
Specifications
Model
LW-02 (18-30HP)
LW-03 (30-45HP)
Measuring Units (metric and imperial)
mm
inch
mm
inch
Max. digging depth
1850
73
2150
85
Max. digging depth max. 2ft flat bottom.
1600
63
2000
79
Max. digging height
2500
98.5
3400
134
Load-over
height
1400
55
1760
69
Transport height
1733
68
1878
74
Ground Clearance
280
11
290
11
Boom pivot height
420
17
500
20
Straight wall digging depth
895
35
1134
45
Max. digging radius
2800
110
3360
132
Loading reach
1044
41
1187
47
Bucket rotation
160°
Swing arc
140°
Packing size:
mm
2300 x 750 x 1500
inch
91 x 30 x 59
Net Weight
kg
470
570
lbs
1036
1254
Gross Weight
kg
510
620
lbs
1122
1364
Net dimension (3 units/packing frame)
mm
1450 x 2200 x 1100
inch
57 x 87 x 43
Quantity/ container :
24 units/20'
Bucket Size and Capacity
Size
mm
250
300
400
450
500
550
inch
10
12
16
18
20
22
Capacity
m³
0.03
0.036
0.048
0.054
0.06
0.066
ft.³
1.06
1.27
1.69
1.90
2.12
2.33
NOTE:
Backhoes ONLY include hydraulic pump for JINMA TRACTORS.
)
)
)
